Packet Highway

Your network traffic, rendered as rush hour. Every packet leaving or entering your PC becomes a vehicle on a 3D night highway — running live behind your desktop icons as a Windows wallpaper. HTTPS rides the bus, QUIC drives a sports car, DNS zips by on a motorcycle, and a ping is a police car. The app that sent the packet floats above the roof as its icon.

No installs, no dependencies, no admin (in demo mode) — it's built entirely from what already ships with Windows: pktmon, the .NET C# compiler, and Microsoft Edge.

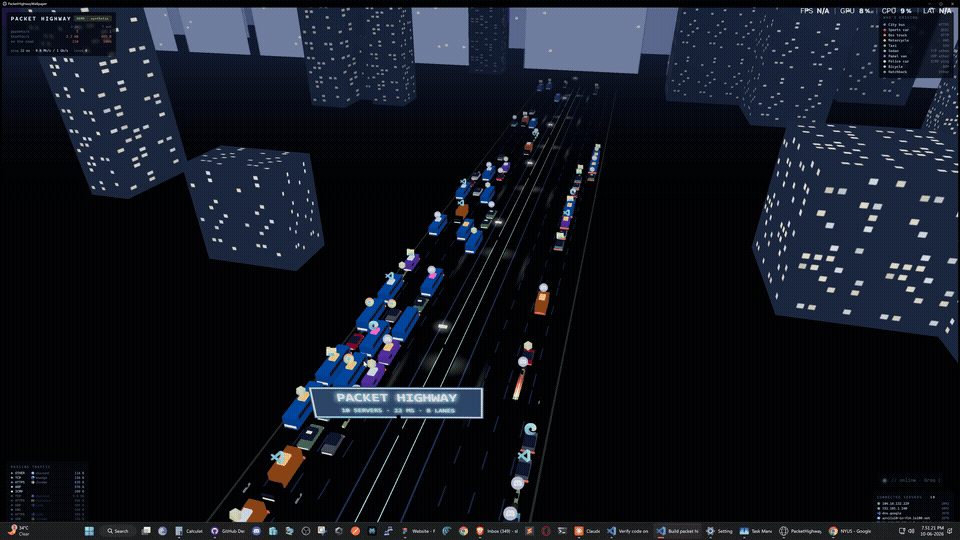

Real recording of the wallpaper running behind the desktop icons — higher-quality MP4, or a still.

▶ Live demo in your browser — synthetic traffic, nothing is captured. Drag to orbit, scroll to zoom, click a car to inspect the packet.

Idea sparked by this tweet by @BijanBowen ("Had Claude Fable 5 log network packets and display them as cars on a highway"). This is an independent open-source implementation, built with Anthropic's Claude Fable 5.

Quick start (Windows 10/11)

git clone https://github.com/shakeebshaan/packet-highway.git
cd packet-highway
start.bat

Browser mode (open http://localhost:8339/ while the server runs): drag to orbit, scroll to zoom, click a car to inspect the packet (protocol, app, addresses, size). The wallpaper itself is non-interactive by design — desktop windows don't receive mouse input.

Who's driving

App logos: packets are attributed to the owning process (local port → PID via the Windows TCP/UDP tables). The app's icon is extracted from its exe and floats above the vehicle; the app name also shows in the passing-traffic log and the click-to-inspect card. Packets that genuinely belong to no app (DNS resolver lookups, kernel traffic) carry a protocol badge in their legend color instead — nothing rides unlabeled.

Vehicles are real low-poly 3D models from Kenney's Car Kit and Starter Kit Racing (CC0, thank you Kenney!), tinted per protocol. The city bus is a kitbashed stretch of the van; if a model fails to load the procedural box vehicle steps back in automatically.

The city is your computer

Everything in frame means something:

• Skyline towers = running processes — height is RAM share, window brightness is CPU use, the top 5 get roof name signs.
• Right bank: the machine room — a CPU power plant (smokestacks work harder under load), a RAM tank (glowing fill level), a disk silo (fill % + dock LED blinking with read/write), and a GPU arena (neon ring spins faster under load), each with a live readout plate.
• Left bank: app city — the apps talking right now rise as towers (height = traffic share) with jumbotron billboards; courier cars visibly commute between their tower and the highway interchange.
• Drones are couriers for your top servers, carrying the server's app logo between its tower and the highway.
• Freight train crosses the skyline on a bandwidth spike (banner shows the burst rate); an airplane lands for a heavy download and takes off for a heavy upload.
• Accidents are real faults: an OS-level packet drop, a duplicate packet, or a ping timeout wrecks a vehicle — spin-out, smoke, debris, skid marks, and a warning label; cleared after 10 s.
• Power-line pulses are long-lived sockets (websockets/push channels), carrying the owning app's logo down the wire.
• Time & weather are real: day/golden hour/night follow your clock (the sun arcs east→west), and rain/snow follow your local weather.
• Painted lane labels mark the IN · DOWNLOAD and OUT · UPLOAD roadways; exit gantries name where your traffic is headed (Google, Cloudflare, GitHub…).

Privacy & security

• Metadata only. Protocol, ports, addresses, sizes, owning process. Packet payloads are never inspected, stored, or displayed.
• Local only. The server binds to 127.0.0.1. No telemetry, no analytics. Nothing about your traffic ever leaves the machine.
• One exception, disclosed: the sky matches your real weather. On startup the backend asks ip-api.com for a coarse lat/lon (standard web request — your IP is all it sees) and open-meteo.com for current precipitation. That's the only outbound traffic, and no capture data is ever included.
• The hosted demo captures nothing. It synthesizes fake traffic client-side in your browser.
• Auditable. The whole backend is one dependency-free C# file you can read before running. Found something? See SECURITY.md.

Admin is required only for live capture (pktmon is an elevated-only Windows component); demo mode runs unprivileged.

How it works

• PacketHighway.exe (built from PacketHighway.cs by build.bat) runs pktmon start --capture --comp nics --log-mode real-time, parses the stream, classifies by protocol/port, attributes to processes, and serves the frontend + a Server-Sent-Events stream on localhost:8339.
• web/ is the Three.js scene (vendored locally, works offline). On static hosting (GitHub Pages / file:// / ?static=1) it switches to a built-in synthetic traffic generator — same event shapes, no backend.
• wallpaper.ps1 opens an Edge --app window and re-parents it into the desktop's WorkerW layer (the layer between the wallpaper and your icons). Handles both the classic layout and the Windows 11 24H2 layout.

Performance / eco mode

The wallpaper runs at 30 fps with a capped pixel ratio and a 220-car limit. Packet sampling kicks in automatically during traffic spikes (the 100% figure in the dashboard shows the sampled share). For a lighter mode add &eco=1 to the URL in start.bat / wallpaper.ps1: 24 fps, fewer buildings, 50-car cap.

Multi-monitor

By default the wallpaper covers the primary monitor only (best framerate, HUD laid out correctly). To stretch one scene across every monitor: powershell -File wallpaper.ps1 -Span. The script is per-monitor-DPI aware, so scaled and mixed-DPI setups place correctly.

Notes

• Without admin the backend runs lite-live: real adapter counters set the rates and the real connection table supplies endpoints + owning apps; only individual packet boundaries are interpolated (the badge says LIVE · net counters · no-admin). Full per-packet capture needs one UAC accept for pktmon.
• After a display-resolution change Windows may rebuild the desktop layers; just run start.bat again.
• QUIC is detected as UDP/443, HTTPS as TCP/443, DNS as port 53, SSH as 22.

Contributing & license

PRs welcome — see CONTRIBUTING.md. The project is deliberately zero-dependency; please keep it that way.

MIT © Shaan Shaik
