Claude quota monitor — ESP32-2432S028R

🇬🇧 English  ·  🇹🇭 ภาษาไทย

💸 Zero Claude tokens — watching your quota never spends it.

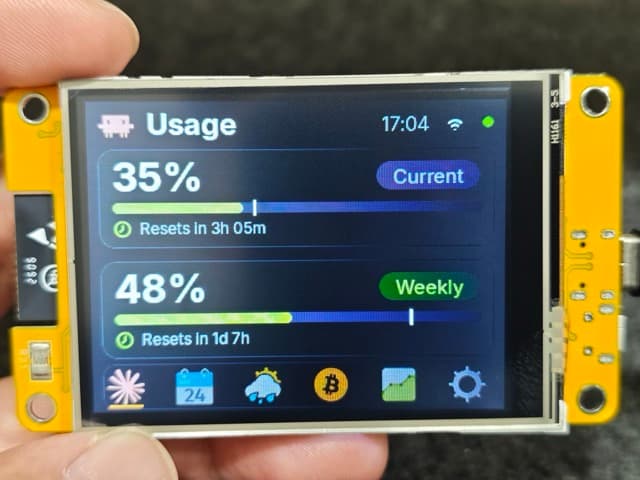

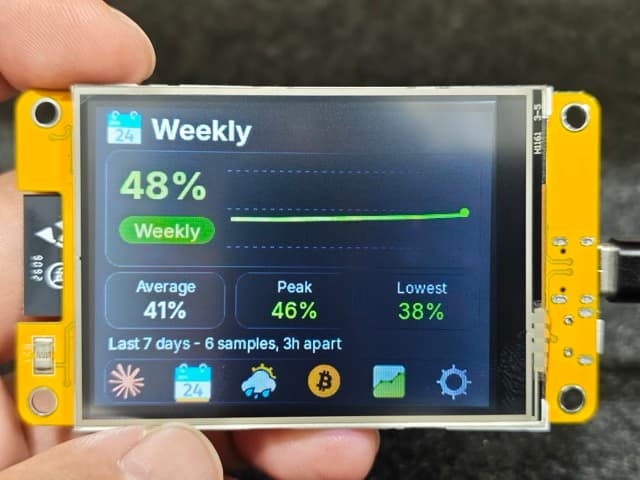

A desk display for Claude Code's two usage windows, plus weather, crypto and stocks. Runs on the "Cheap Yellow Display" (ESP32-2432S028R, 2.8" touch), drawn with LVGL 9. The numbers come from the same read-only endpoint the claude.ai web app uses — no prompt, no model call, no hit to your rate-limit windows.

Claude	Weekly Usage	Weather
Crypto	Stock	Setting

What you need

Windows also needs the CH340 driver (built into macOS 12+/Linux). No soldering, no extra parts.

1. Clone and configure

git clone https://github.com/thaitop/esp32-claude-quota.git
cd esp32-claude-quota
cp firmware/src/secrets.h.example firmware/src/secrets.h

Edit firmware/src/secrets.h:

#define WIFI_SSID     "your-network"        // 2.4GHz only
#define WIFI_PASSWORD "your-password"
#define BRIDGE_BASE_URL "http://192.168.1.117:8787"   // LAN IP of the Claude Code machine
#define WEATHER_LATITUDE  13.75f
#define WEATHER_LONGITUDE 100.50f
#define WEATHER_TZ "Asia/Bangkok"           // IANA zone name
#define CLOCK_TZ   "UTC+7"                   // header clock offset
#define FINNHUB_TOKEN "your-finnhub-token"  // free key from finnhub.io/register — Stock screen only

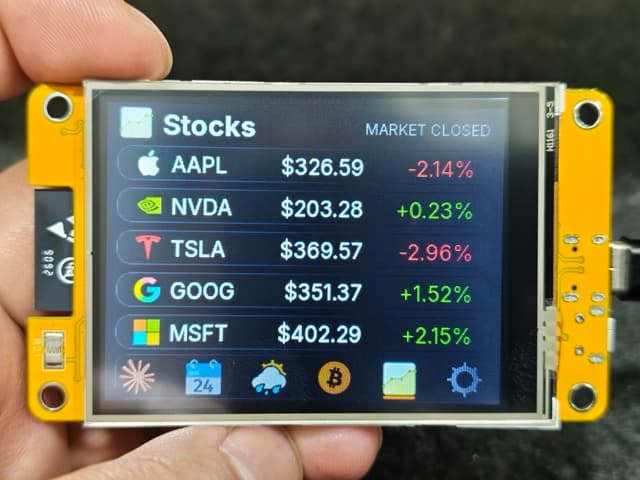

Get the machine's IP with ipconfig getifaddr en0 (macOS) or hostname -I (Linux). The Finnhub token is optional — leaving the placeholder just shows -- on the Stock screen. Weather, coins and stocks can also be changed on the device later via Config Mode, no reflash.

2. Flash

cd firmware
~/.local/bin/pio run --target upload > /tmp/upload.log 2>&1; echo "exit=$?"
grep -E "Hash of data|Hard resetting|SUCCESS|FAILED" /tmp/upload.log

First build pulls the toolchain (a few minutes); later builds ~1 min. Then watch it boot:

~/.local/bin/pio device monitor

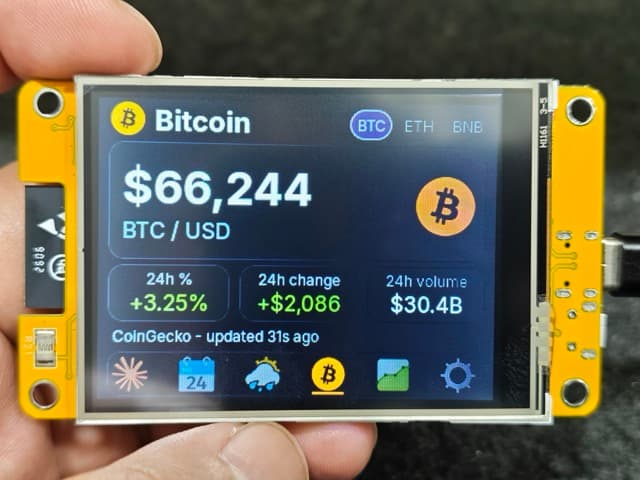

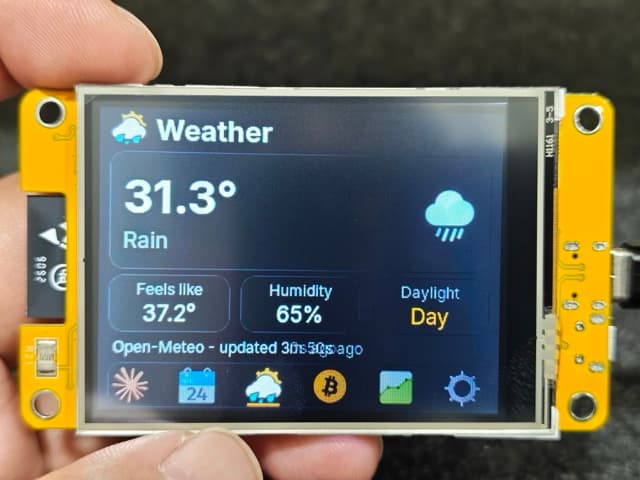

Weather and Crypto work as soon as WiFi is up; the two Claude screens stay at -- until the bridge is running (steps 3–4).

3. Set up the quota source

Give fetch_usage.py a claude.ai session key:

mkdir -p ~/.config/claude-quota
pbpaste > ~/.config/claude-quota/session-key   # or paste into an editor
chmod 600 ~/.config/claude-quota/session-key

The value is the sessionKey cookie from a browser logged in to claude.ai — it starts with sk-ant-sid01-. Treat it like your password.

Then start the fetcher:

python3 bridge/fetch_usage.py --check    # verify paths/permissions
python3 bridge/fetch_usage.py --interval # loop on a 60s timer

Use a Python with a working TLS trust store — Homebrew's, not the python.org build. Pass --org-id if you belong to more than one organization.

4. Start the bridge

python3 bridge/quota_bridge.py
# → http://0.0.0.0:8787/quota

Check it:

curl -s http://localhost:8787/quota | python3 -m json.tool

If a check from a phone or another laptop hangs, allow the Python binary through the host firewall (macOS: System Settings → Network → Firewall).

5. Keep both processes running (optional)

To survive reboots, install two launchd jobs — one for the fetcher, one for the bridge. Ready-made plists live in bridge/launchd/:

cp bridge/launchd/com.local.claude-quota-fetch.plist.example \
   ~/Library/LaunchAgents/com.local.claude-quota-fetch.plist
cp bridge/launchd/com.local.claude-quota-bridge.plist.example \
   ~/Library/LaunchAgents/com.local.claude-quota-bridge.plist

# rewrite the placeholder path to your real repo (run from the repo root)
sed -i '' "s#/Users/you/esp32-claude-quota#$PWD#" \
  ~/Library/LaunchAgents/com.local.claude-quota-{fetch,bridge}.plist

launchctl load ~/Library/LaunchAgents/com.local.claude-quota-fetch.plist
launchctl load ~/Library/LaunchAgents/com.local.claude-quota-bridge.plist
launchctl list | grep claude-quota    # second column is the last exit code (0 = ok)

An expired key does not kill the fetcher — paste a fresh one into the key file and the display recovers within one interval, no restart. Linux: a user systemd unit with Restart=always. Windows: Task Scheduler at logon.

Touch controls

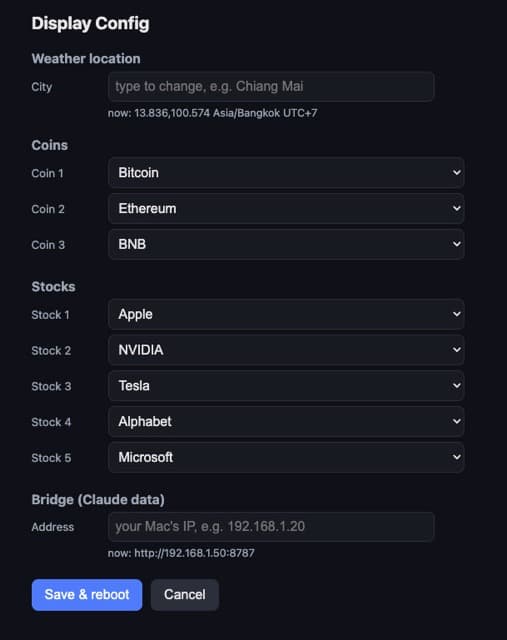

Config Mode

Change the weather location, coins and stocks from a browser — no reflash.

Hold the Config button on the Setting screen. The panel shows an address and a four-digit PIN. Open the address on a phone or laptop on the same LAN, enter the PIN, pick your city / coins / stocks, then Save & reboot. To leave without a browser, hold a press anywhere on the panel to exit unsaved.

Colour thresholds

Troubleshooting

• Upload won't connect (No serial data received). Hold BOOT while it starts. No port under pio device list → cable or CH340 driver.
• Upload dies mid-transfer. Lower upload_speed to 115200 in platformio.ini.
• Blank display, serial active. Backlight pin — other CYD revisions use GPIO27; change -DTFT_BL=21.
• Colours inverted. Swap -DILI9341_2_DRIVER=1 for -DILI9341_DRIVER=1.
• Touches off-centre. Replace the four TOUCH_RAW_* constants in config.h.
• WiFi never joins. 2.4GHz only; captive-portal networks won't work.

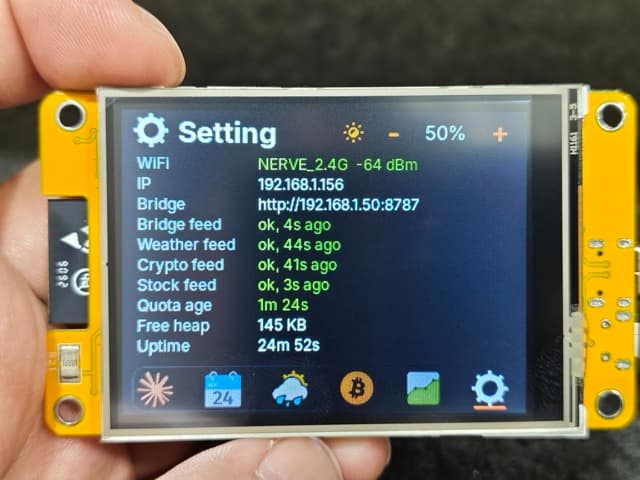

• Any figure shows --. The value is not trustworthy, not zero. The Setting screen names the failing feed.
• Only Claude screens --, bridge fine. Nearly always an expired session key. Paste a fresh one; it recovers next pass.
• Editing include/lv_conf.h changes nothing. Run pio run -t clean first.

Security notes

The sessionKey cookie is a full account credential, not a scoped API key. It lives in ~/.config/claude-quota/session-key (mode 600, outside the repo) and is never logged or put in a plist. The bridge serves on the LAN with no auth (percentages only, no credentials) — bind it to a trusted network, don't port-forward. The ESP32 stores WiFi credentials in plaintext, so treat a board you give away as one you gave your WiFi password to.
