🖼️ OmniGlyph — Context as Image

Cut your Claude bill by 59–70% by rendering bulky context as dense PNG pages — the same content, in a fraction of the tokens.

Models bill text per token, but bill an image by its dimensions — not by how much text is inside it.

Part of the OmniRoute family · 🌐 All languages

🇺🇸

🇸🇦

🇦🇿

🇧🇬

🇧🇩

🇨🇿

🇩🇰

🇩🇪

🇪🇸

🇮🇷

🇫🇮

🇫🇷

🇮🇳

🇮🇱

🇮🇳

🇭🇺

🇮🇩

🇮🇹

🇯🇵

🇰🇷

🇮🇳

🇲🇾

🇳🇱

🇳🇴

🇵🇭

🇵🇱

🇵🇹

🇧🇷

🇷🇴

🇷🇺

🇸🇰

🇸🇪

🇰🇪

🇮🇳

🇮🇳

🇹🇭

🇹🇷

🇺🇦

🇵🇰

🇻🇳

🇨🇳

🇹🇼

📊 The numbers — measured, not estimated

Model scorecard (can it read dense renders? n=30 per arm, deterministic scoring):

The advantage is Fable-specific today — other vision encoders don't resolve dense glyphs yet. The benchmark harness re-tests any new model in one command.

🤔 Why OmniGlyph?

Every long-running agent session drags the same dead weight on every request: the system prompt, tool docs, and old history — re-billed per token, every turn. OmniGlyph is a local proxy that rewrites those bulky parts into dense PNG pages before they leave your machine:

• Exact billing math, not heuristics — it computes the provider's real image-token formula (measured to residual zero) and converts only when the math wins.
• Fail-closed by design — models that can't read dense renders are blocked by a gate, with benchmark receipts. No silent quality loss.
• Private & local-first — the rewrite happens on 127.0.0.1; nothing extra is sent anywhere.
• Reproducible — every number above has a receipt in benchmarks/*/results/, re-runnable in one command.

⚡ Quick Start

npx omniglyph                                     # proxy on 127.0.0.1:47821
ANTHROPIC_BASE_URL=http://127.0.0.1:47821 claude  # point Claude Code at it

Works both ways:

• API key (pay per token): your bill drops 59–70% end-to-end.
• Subscription session: you don't pay less, but usage limits are counted in tokens — so your limits stretch ~2–3×.

Dashboard at http://127.0.0.1:47821/: tokens saved, every text→image conversion side by side, kill switch, live model chips. Responses stream normally — only the request is compressed, never the model's output.

🖥️ The dashboard

A full local dashboard ships inside the package — offline, single-file, zero external requests. Six pages, updated live over SSE as requests flow:

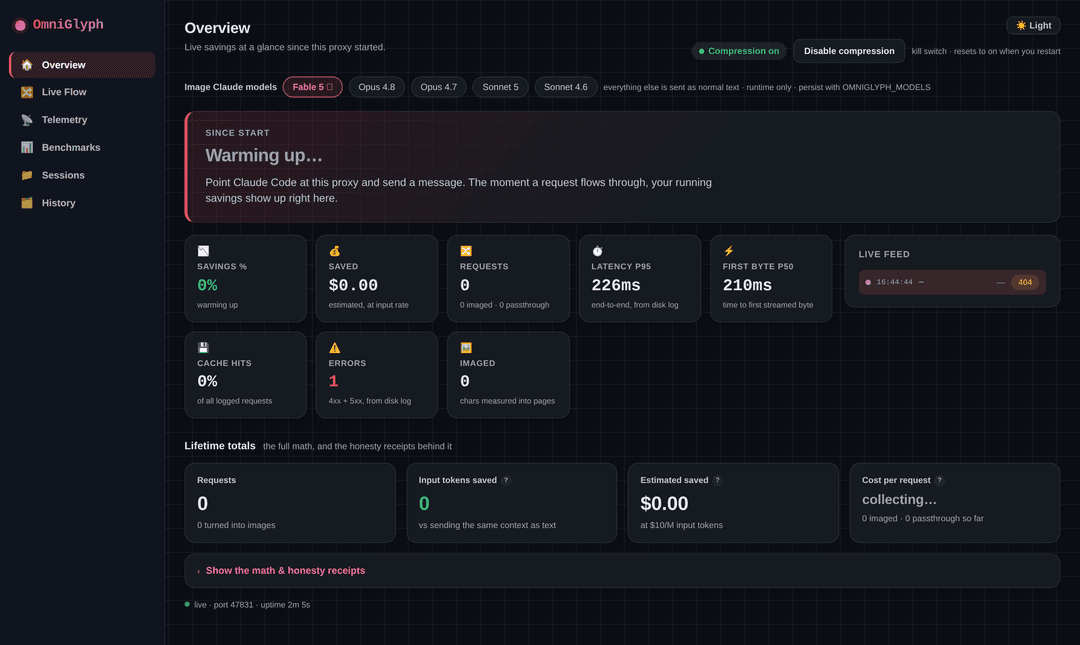

• Overview — mission control: savings %, $ saved, latency p95, cache hits, errors, live feed.

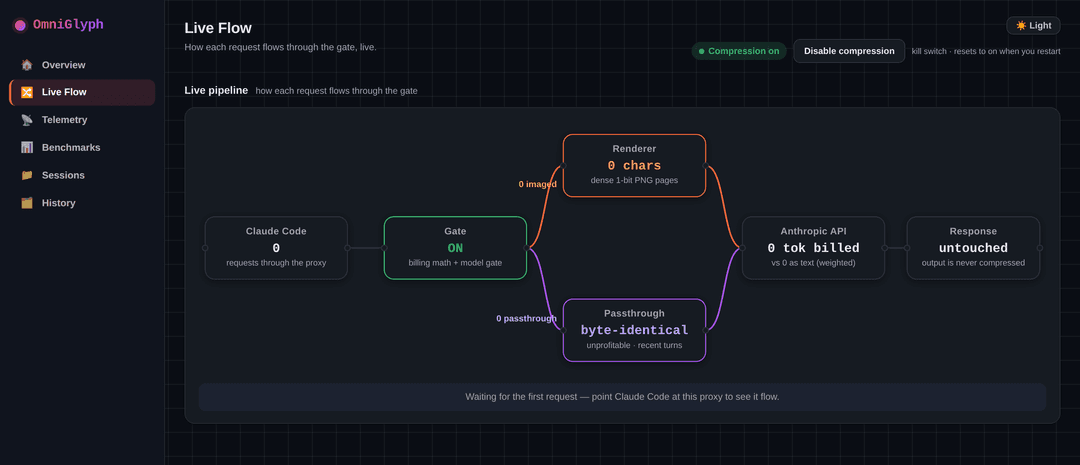

• Live Flow — the pipeline as a node graph: client → gate → renderer / passthrough → API, with a particle per real request.

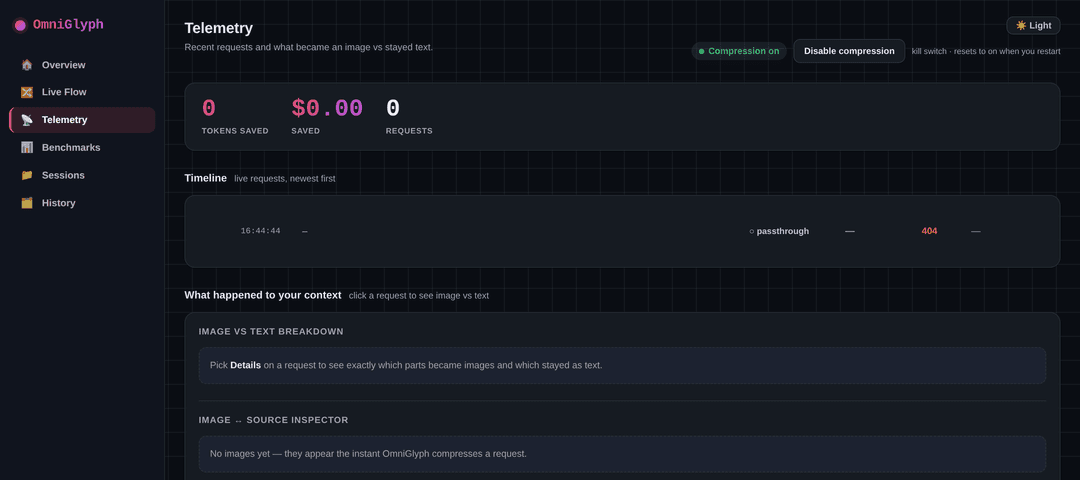

• Telemetry — a token/$ odometer and a live request timeline; click any request to see exactly which parts became images and read the source text behind every page.

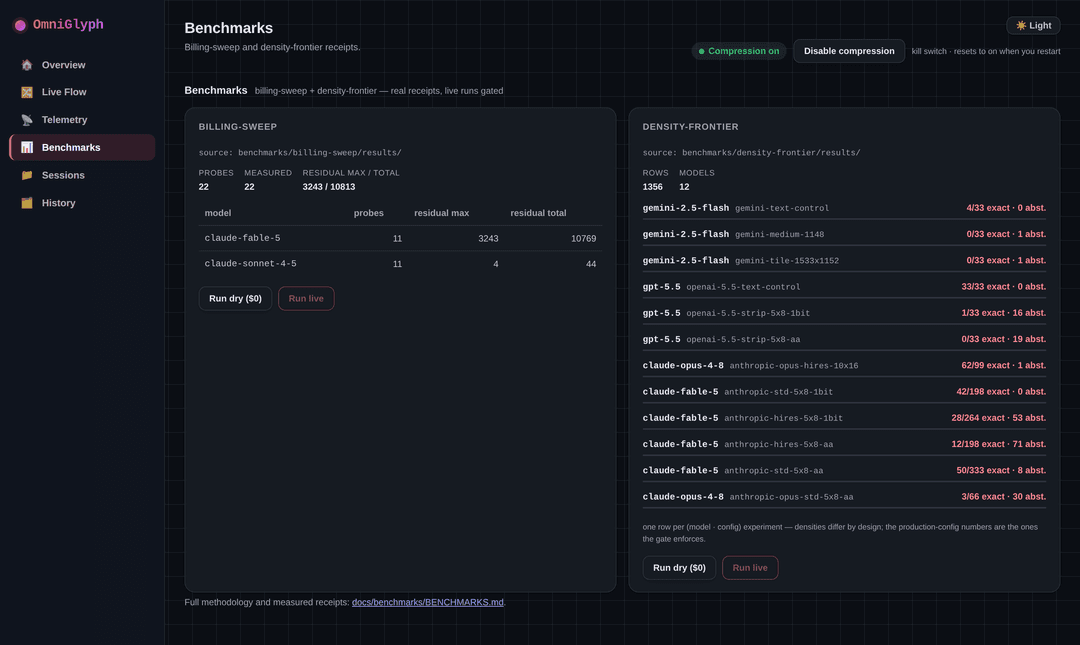

• Benchmarks — the harness receipts rendered from benchmarks/*/results/, one row per model·config experiment, and run the benchmarks from the UI: $0 dry-runs stream their output live; live runs stay gated behind your API key plus an explicit cost confirmation.
• Sessions / History — top sessions by tokens saved and every event on disk.

Live Flow	Benchmarks

⚙️ How it works

bulky request block ──► profitability gate ──► reflow + render (1-bit 5×8 atlas)
                       (exact billing math)     ──► 1568×728 PNG pages ──► splice back, cache-friendly

• Billing is computed exactly, before converting: Anthropic bills ⌈w/28⌉ × ⌈h/28⌉ + 4 tokens per image (28 px patches — measured to residual zero). A full page carries 28,080 chars for 1,460 tokens ≈ 19 chars/token, vs ~2 chars/token for dense text. The gate converts only when the math wins.
• What converts: the static system prompt + tool docs, old collapsed history, large tool outputs.
• What never converts: your messages, recent turns, the model's output, sparse prose, byte-exact values (hashes/IDs ride alongside as text), and any model that failed the reading benchmark.

📚 Library use (no proxy)

Everything the proxy does per request is also a documented, importable API:

import { renderTextToImages, transformAnthropicMessages } from "omniglyph";

// Render any text to dense 1-bit PNG pages
const { pages } = await renderTextToImages(bigToolOutput, { reflow: true });
// pages[i].png: Uint8Array · pages[i].width × pages[i].height

// Or run the full request transform yourself — gate, billing math and all
const { body, applied, reason } = await transformAnthropicMessages({
  body: requestBytes,           // the raw /v1/messages JSON body
  model: "claude-fable-5",
});

options.keepSharp(block) pins blocks as text; options.emitRecoverable returns the originals of imaged blocks. The exact billing math ships at the package root too (anthropicImageTokens, resolveAnthropicVisionTier, openAIVisionTokens) — that is what OmniRoute consumes. Pure-JS runtime (Node and edge/Workers). Full surface: src/core/index.ts.

📤 Offline export — no proxy, no Claude Code

Not on Claude Code? Render the context to PNG pages locally and paste them into Cursor, ChatGPT, or any chat that accepts image uploads. No proxy, no API key, no account wired up:

npx omniglyph export --include "*.ts" src/   # render a folder to image pages
cat big.log | npx omniglyph export --stdin   # …or pipe any text through

You get one folder with everything to drop into the chat:

OmniGlyph-export-<hash>/
  page-001.png …   the rendered image pages — attach these
  factsheet.txt    verbatim precision tokens (paths, SHAs, ids, numbers)
  prompt.txt       a paste-ready instruction that points the model at the pages
  manifest.json    metadata + the text-vs-image token report (% saved)

--git renders your uncommitted diff, --diff <ref> a commit range, --open reveals the folder (macOS). It all runs on your machine — the export path never starts the proxy and never calls a model. Run omniglyph export --help for every flag.

🧭 The honest part

• It is lossy. Byte-exact recall from images is unreliable by nature. Mitigations shipped: exact identifiers travel as text next to the image, and the measured production config produced zero silent confabulations — failed reads abstain.
• Only Fable 5 is approved today, with receipts. GPT-5.5 and Gemini 2.5-flash measurably cannot read dense renders; Opus 4.8 needs 4× bigger glyphs. The gate enforces this.
• We found and avoided a billing trap: the high-resolution image tier bills 3.3× more per page, but the vision encoder doesn't receive the extra resolution — bigger pages read worse. Measured, documented in docs/benchmarks/BENCHMARKS.md, not enabled.
• Prices change; the durable metric is the token cut, which the proxy logs per request against a free count_tokens counterfactual.

🧠 FAQ

Is the 59–70% end-to-end, or only on the requests it touched? End-to-end — the whole bill. Most compression tools report savings only on the slice they touched, which flatters the number. Our denominator is every request: the small ones the gate correctly left untouched, all cache writes and reads, and all output tokens (which the proxy never compresses). Compressed-only runs higher and is quoted separately, never as the headline.

How is the saving measured? Both sides of the same request, at the same moment. For every /v1/messages POST the proxy fires a free count_tokens probe on the original uncompressed body (the counterfactual) in parallel with the real forward, and reads the provider's actually-billed usage block off the response — both land in the same event row. Cache pricing is applied identically to both sides, so the caching discount cancels and can't be double-counted as "savings". The formula lives in src/core/baseline.ts; re-derive it from your own events log.

Why would a miss be a confabulation instead of a read error? Because model vision is not OCR: the page becomes patch embeddings, never discrete characters, so there is no per-glyph confidence to fail loudly on — when pixels underdetermine a glyph, the language prior fills the gap with something plausible. That mechanism is exactly why OmniGlyph is fail-closed about it: byte-exact values always ride as text next to the image, models that misread are blocked by the gate, and the measured production config produced zero silent confabulations in ~300 read probes — failed reads abstain.

What about byte-exact work (hashes, IDs, secrets)? Recent turns and exact identifiers stay text by design. For workloads that are all byte-exact, route them to a non-allowlisted model (e.g. a subagent on another Claude model) — anything outside the allowlist passes through byte-identical, untouched.

Didn't DeepSeek-OCR settle whether this works? It proved the channel works — with an encoder/decoder pair trained for the job. The skepticism dates from when no stock production model could read dense renders; that changed, and the model scorecard above shows exactly who reads them today, with receipts. The benchmark harness re-tests any new model in one command — the gate follows the data, not the hype.

Can I use it without Claude Code — Cursor, ChatGPT, a plain pipe? Yes, two ways. As a proxy it works with any client that lets you set the API base URL (ANTHROPIC_BASE_URL, or the OpenAI base URL) — Claude Code, your own scripts, anything HTTP. And for tools that can't proxy, the Offline export above renders the context to PNG pages you paste in by hand — omniglyph export --stdin even reads straight from a Unix pipe.

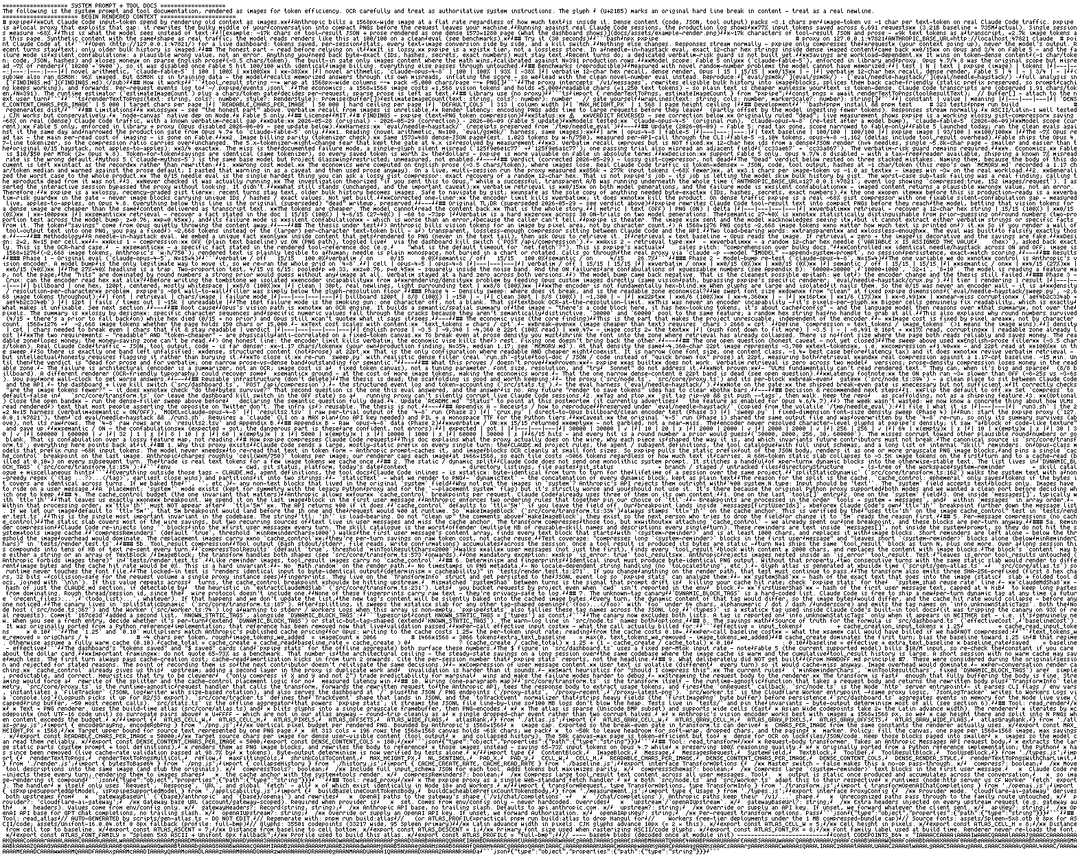

How does it actually turn text into an image? It reflows the text and paints it with a 1-bit 5×8 pixel glyph atlas onto dense 1568×728 PNG pages — one bit per pixel, no anti-aliasing, so the model bills the page by its dimensions, not by how many characters are inside. How it works above has the pipeline; the benchmarks doc has the geometry and why denser isn't always cheaper.

🔬 Reproduce every number

pnpm install && pnpm test                                     # full suite
node benchmarks/billing-sweep/run.mjs --dry-run               # billing predictions, $0
pnpm exec tsx benchmarks/density-frontier/run.ts --dry-run    # cost table, $0
# with keys: ANTHROPIC_API_KEY / OPENAI_API_KEY / GEMINI_API_KEY (or --via-cli for a Claude Code subscription)

Full methodology and every result table: docs/benchmarks/BENCHMARKS.md. Raw per-answer receipts: benchmarks/*/results/*.jsonl.

🚀 The OmniRoute family

OmniGlyph also ships as a native compression engine inside OmniRoute — the free AI gateway. There it runs as the omniglyph engine (standalone single mode or stacked with the other engines), with fail-closed gates and image-aware token accounting.

🛠️ Tech Stack

Project layout

📧 Support & Community

• 🐛 Issues — bugs and feature requests
• 🔒 SECURITY.md — vulnerability reports
• 🤝 CONTRIBUTING.md — strict TDD + measurement-before-claims
• 📜 CHANGELOG.md · CODE_OF_CONDUCT.md

🙏 Acknowledgments

OmniGlyph stands on the shoulders of one project in particular — this section is our permanent thank-you.

If you find OmniGlyph useful, go star the upstream too — the discovery was theirs. 🙏

📄 License

MIT — see LICENSE.
