mcu-skills — Claude Code Skills for Microcontrollers (MCU)

Claude Code skills for MCU firmware development on STM32, ESP32, ESP8266, RP2040 / RP2350, nRF52 and AVR boards. These are Agent Skills (SKILL.md) for embedded development — one skill per board, holding the board-specific knowledge that is otherwise scattered across a datasheet, a reference manual, a schematic and a weekend of debugging.

A good MCU skill answers, without the model guessing: which pin does what, which clock tree actually works, which HAL call silently does nothing, and how to get a build onto the chip.

Skills in this repo

Skill	Board	MCU	Image

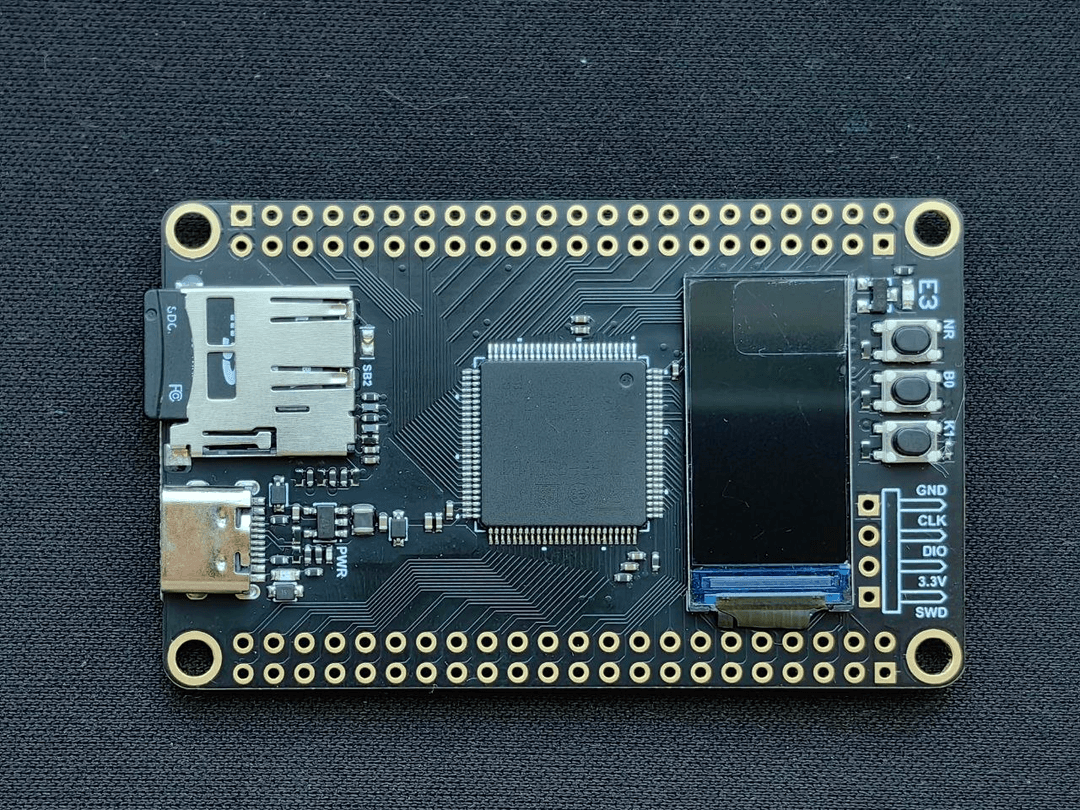

stm32h750-weact	WeAct Studio MiniSTM32H7xx core board	STM32H750VBT6 (Cortex-M7)

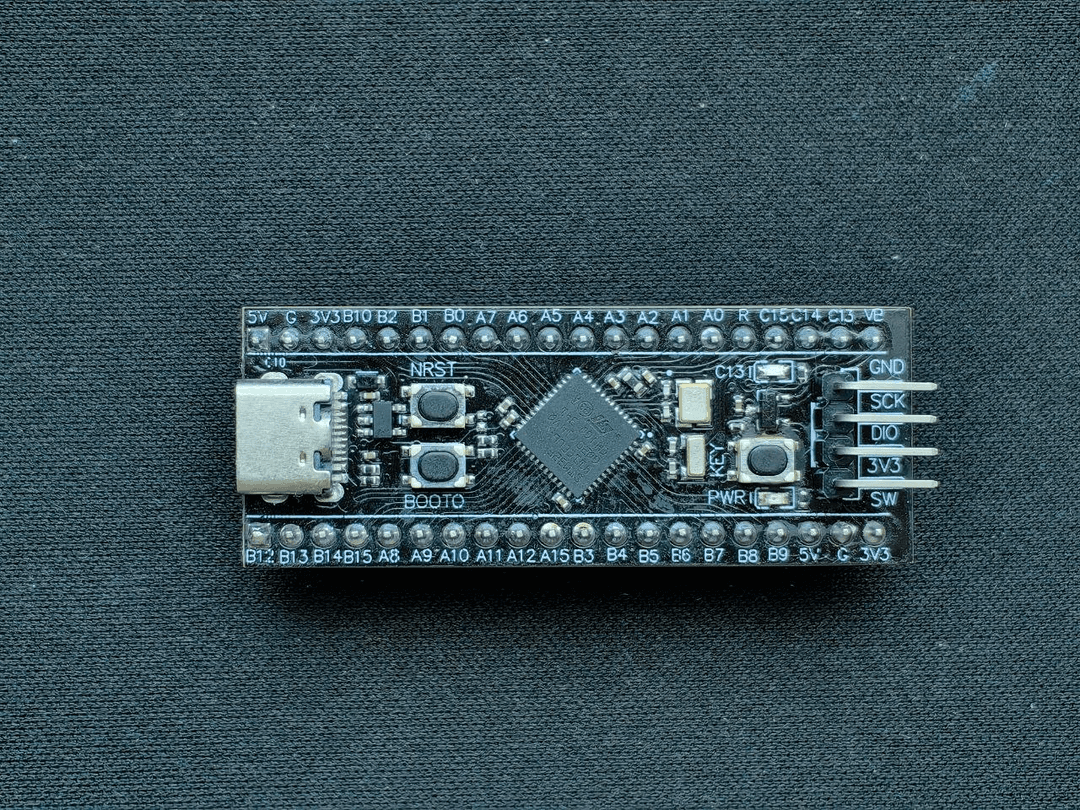

stm32f411-blackpill	WeAct Studio "Black Pill" V3.x (and clones)	STM32F411CEU6 (Cortex-M4F)

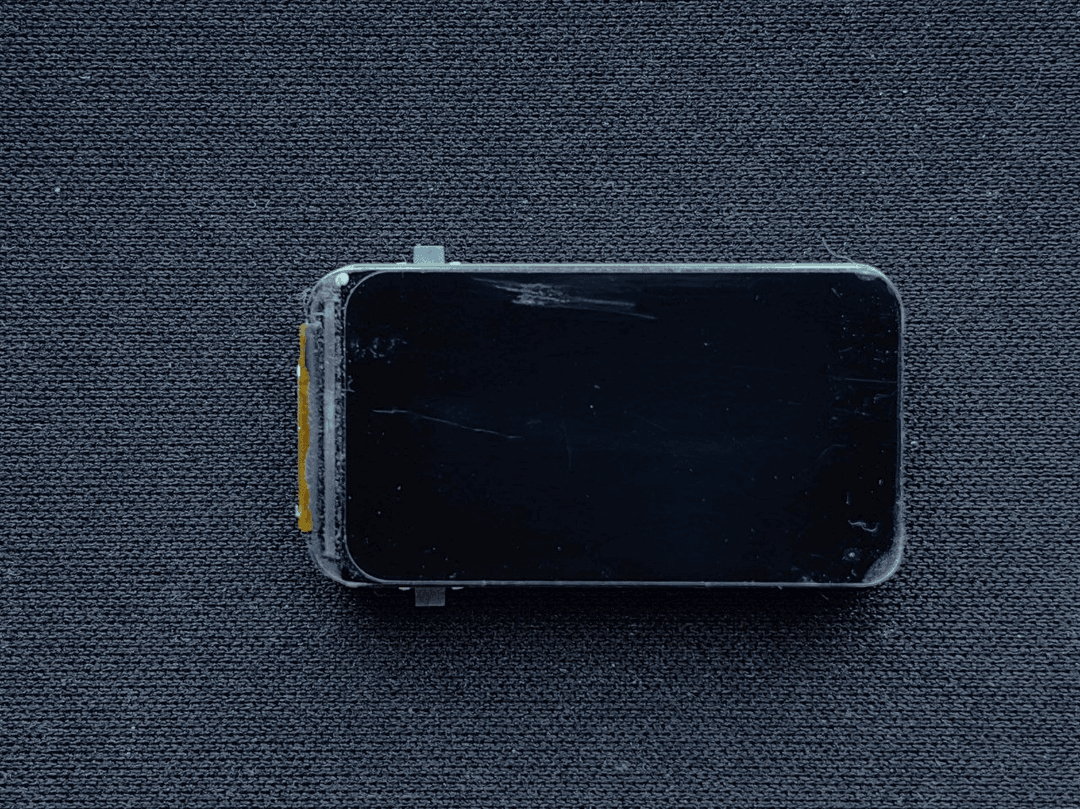

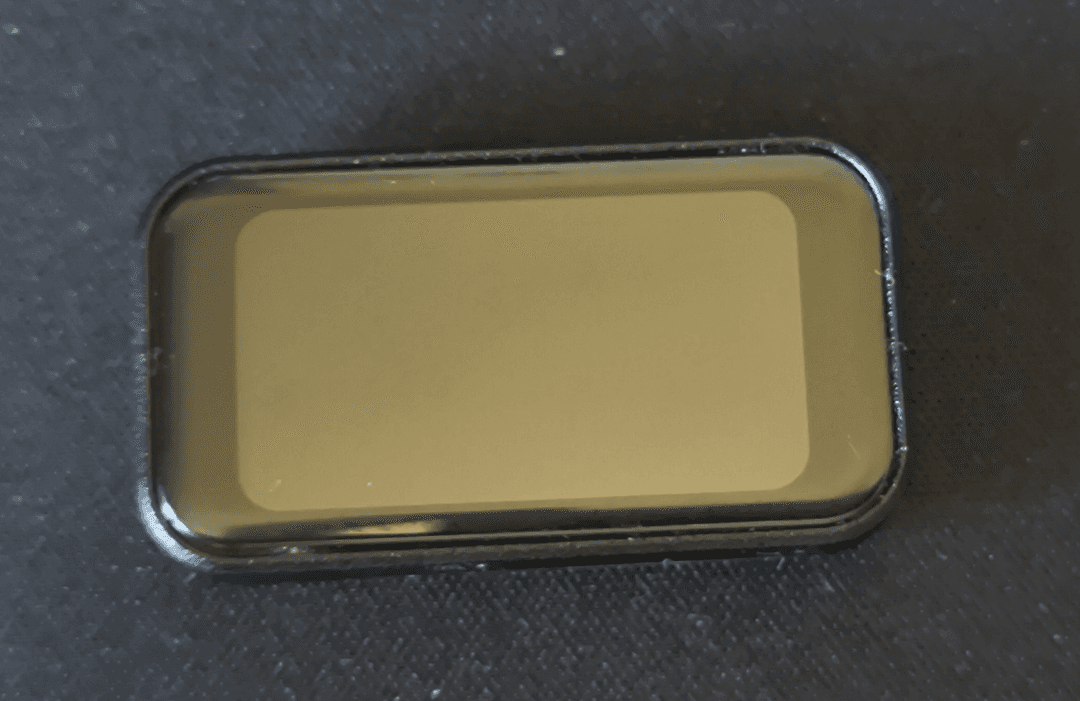

esp32c6-lcd147	Waveshare ESP32-C6-LCD-1.47	ESP32-C6FH4 (RISC-V)
esp32c6-touch-lcd147	Waveshare ESP32-C6-Touch-LCD-1.47	ESP32-C6FH8 (RISC-V)

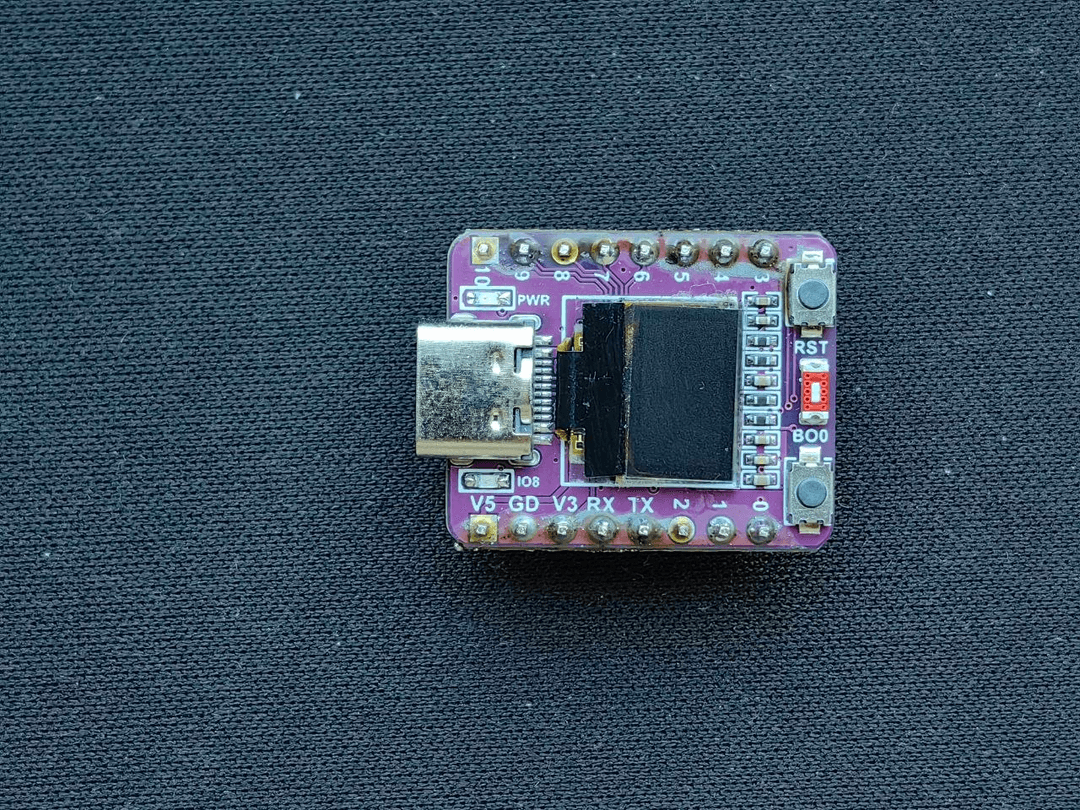

esp32c3-oled042	ESP32-C3 0.42" OLED (ABRobot / 01Space)	ESP32-C3FH4 (RISC-V)

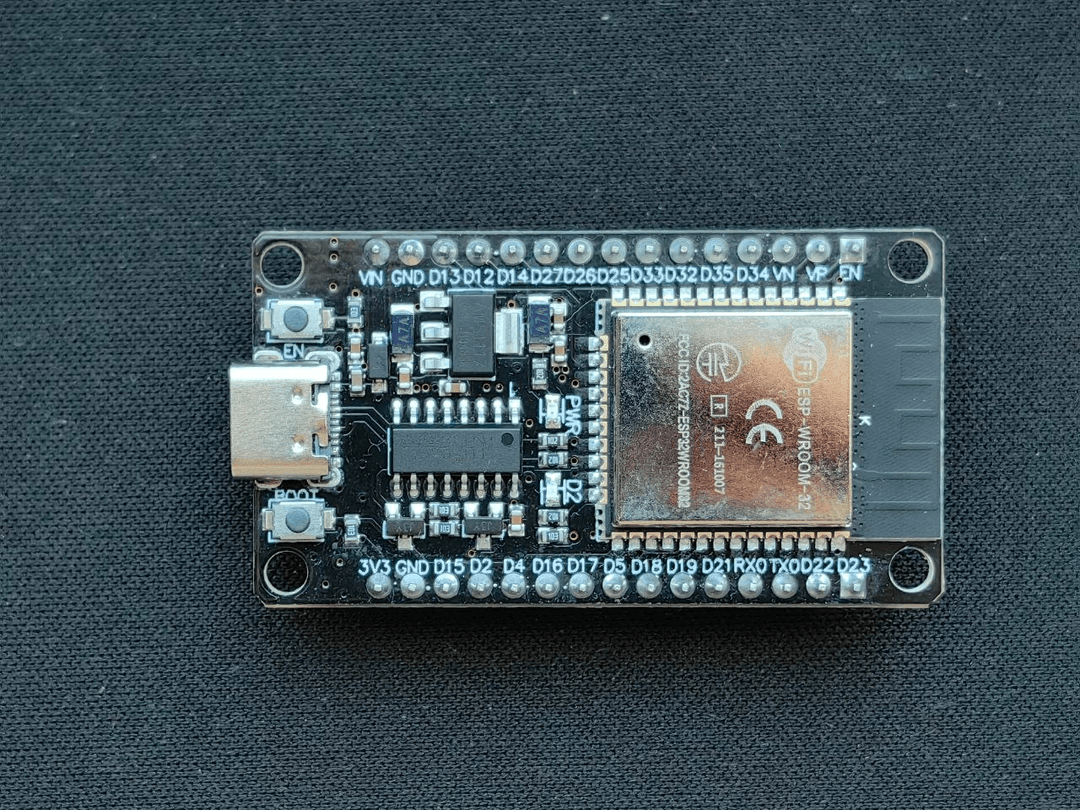

esp32-wroom-30pin	30-pin ESP32 devkit (DOIT V1 / CH340 Type-C)	ESP32-D0WDQ6 (Xtensa LX6)

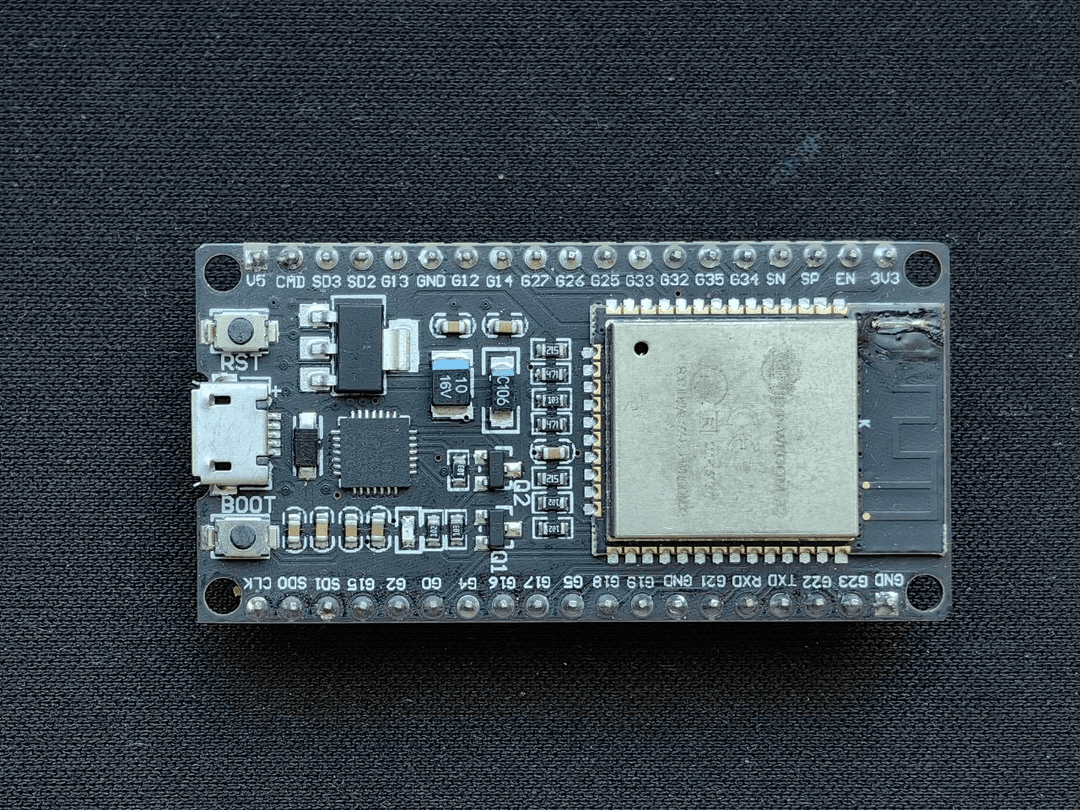

esp32-wroom-36pin	36-pin ESP32 devkit (original DOIT DevKit V1)	ESP32-D0WDQ6 (Xtensa LX6)
esp32-wroom-38pin	38-pin ESP32 devkit (DevKitC V4 / NodeMCU-32S)	ESP32-D0WDQ6 (Xtensa LX6)

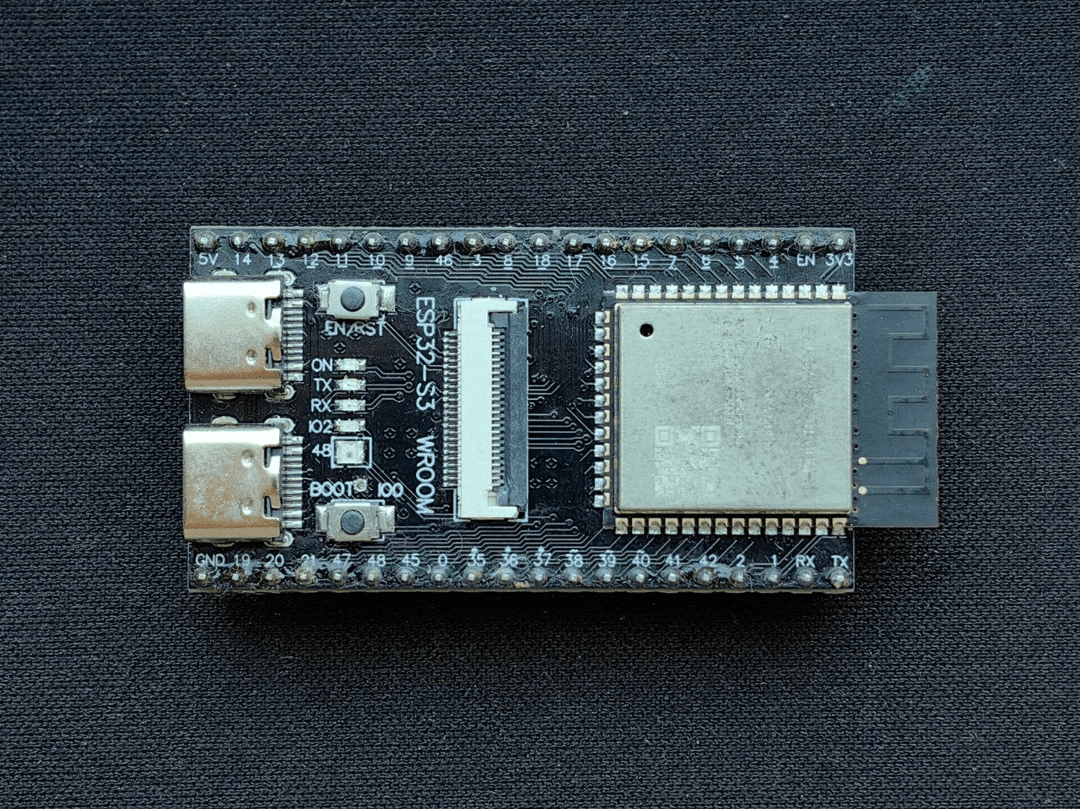

esp32s3-cam-40pin	40-pin ESP32-S3 CAM board (Freenove FNK0085 / clones)	ESP32-S3-WROOM-1 N8R8/N16R8 (Xtensa LX7)

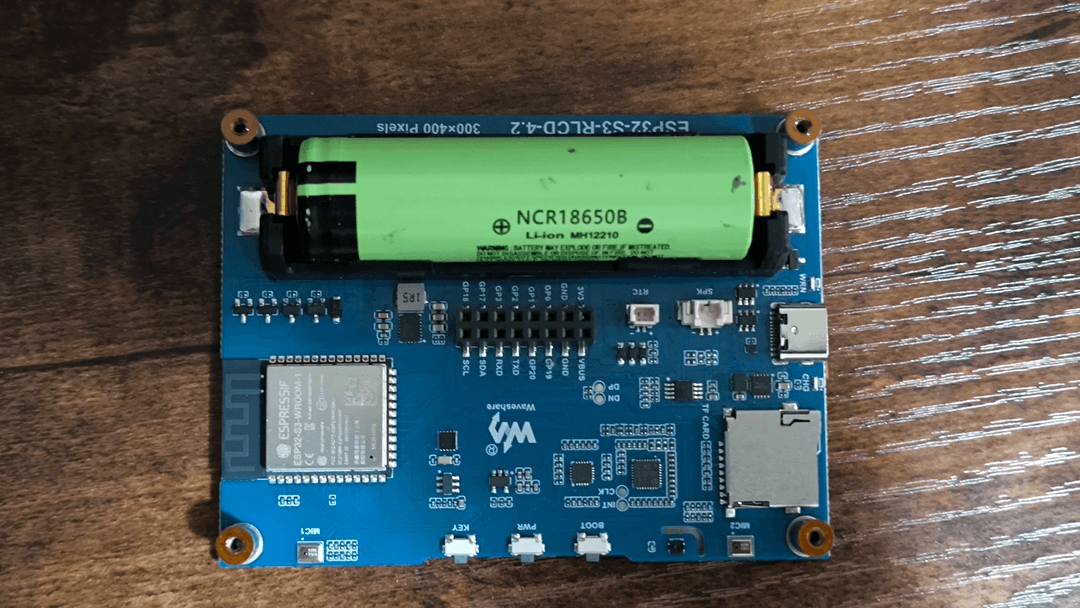

esp32s3-rlcd42	Waveshare ESP32-S3-RLCD-4.2 (SKU 33298 / 33507)	ESP32-S3-WROOM-1-N16R8 (Xtensa LX7)

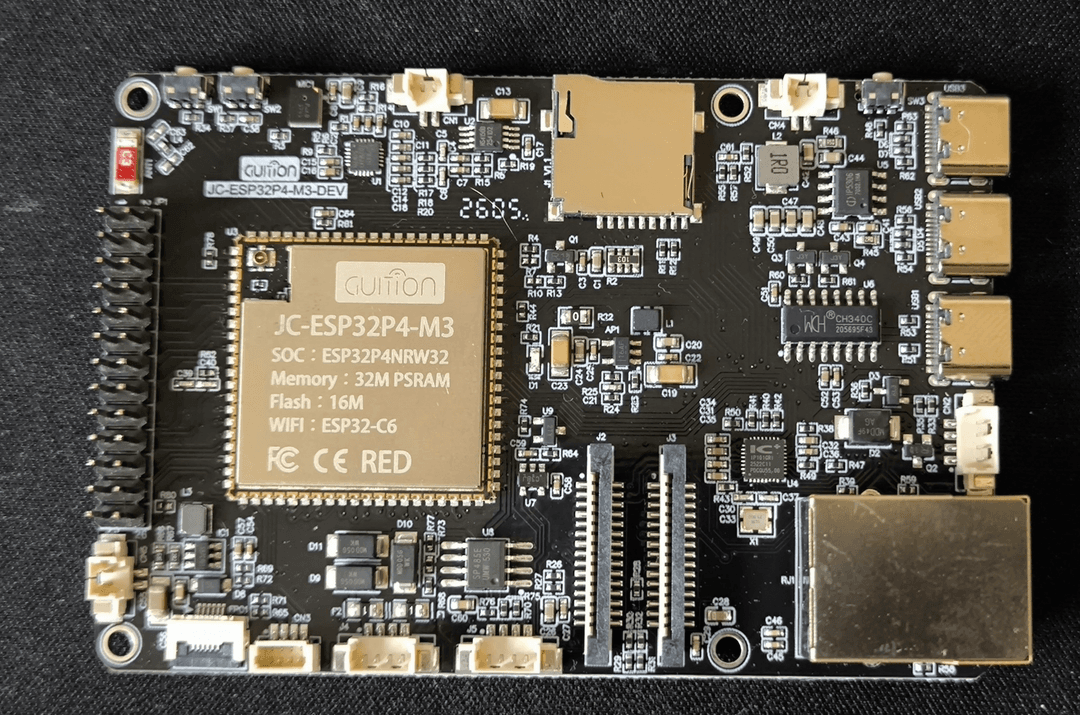

esp32p4-jc-m3-dev	Guition JC-ESP32P4-M3-DEV	ESP32-P4NRW32 (2× RISC-V) + ESP32-C6

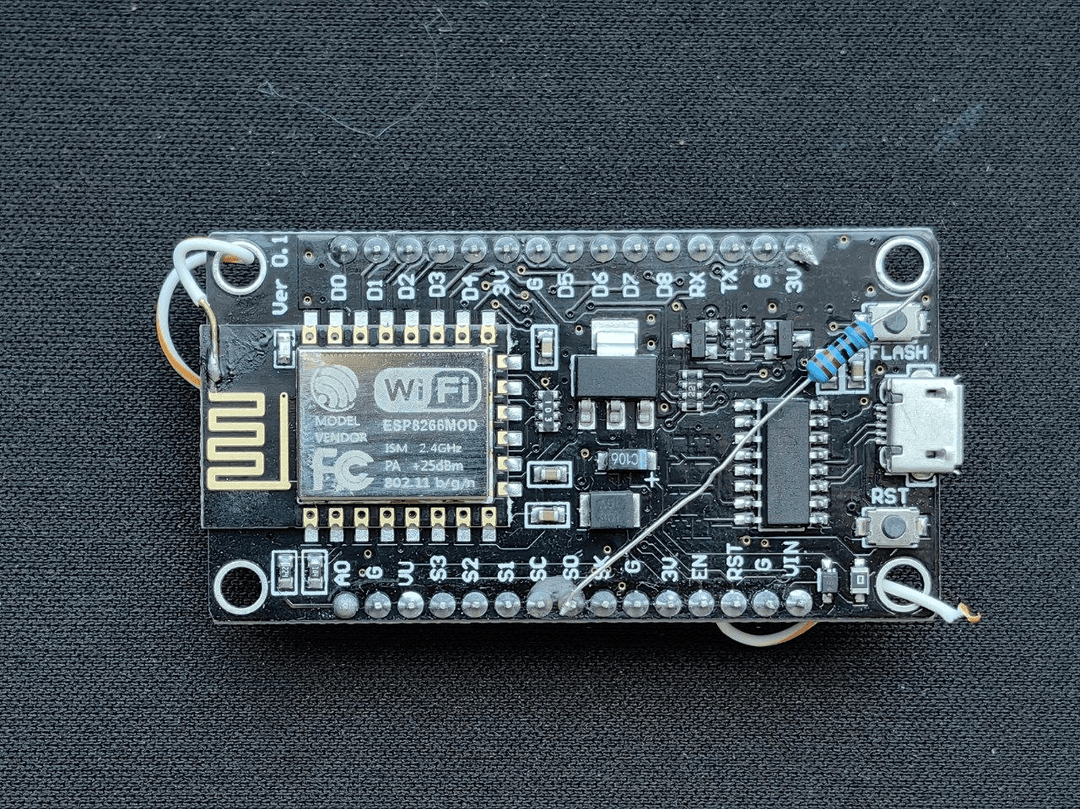

esp8266-nodemcu-30pin	30-pin NodeMCU devkit (DevKit V1.0 / Amica, LoLin V3)	ESP8266EX (ESP-12E/F, Tensilica L106)

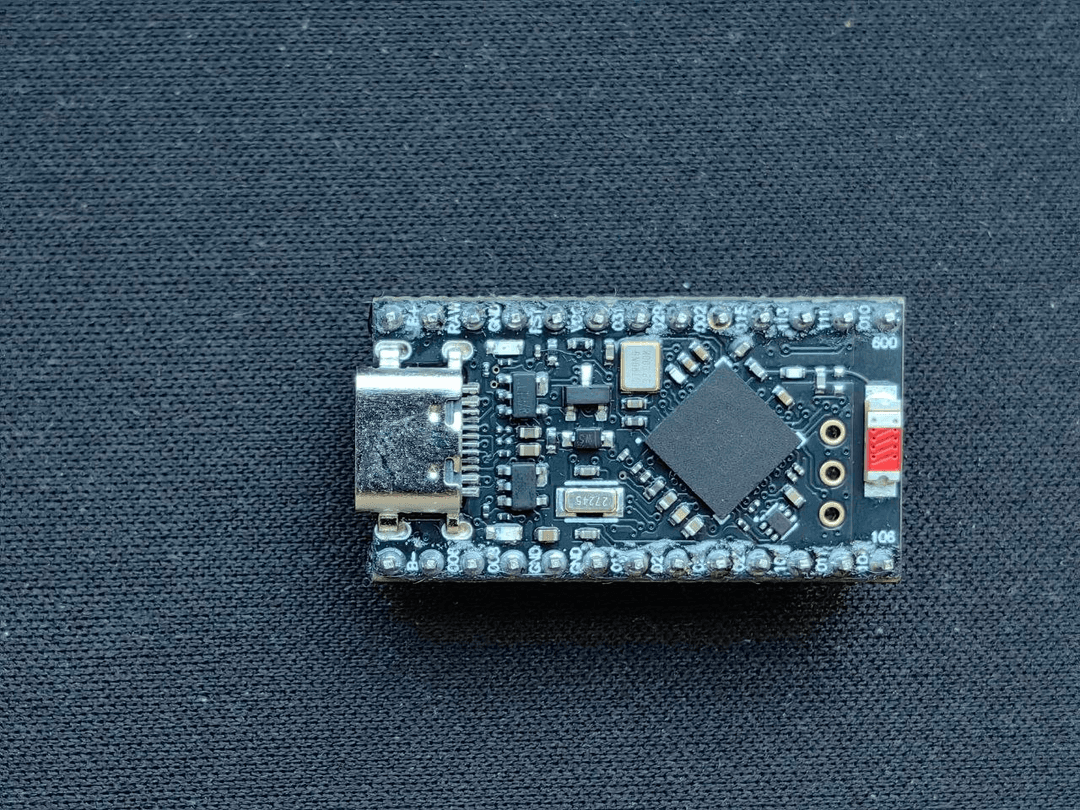

nrf52840-promicro	ProMicro nRF52840 V1940 (nice!nano v2 clone / SuperMini)	nRF52840 QIAA (Cortex-M4F)

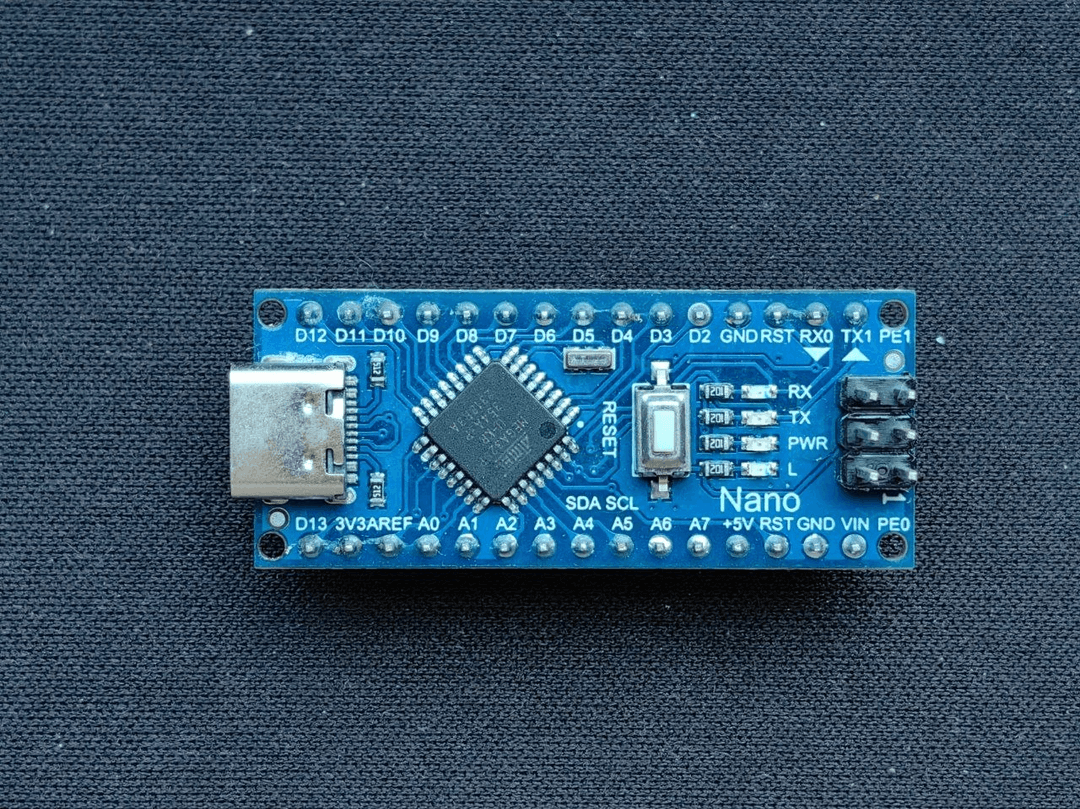

atmega328p-nano	Arduino Nano (A000005)	ATmega328P (AVR 8-bit)

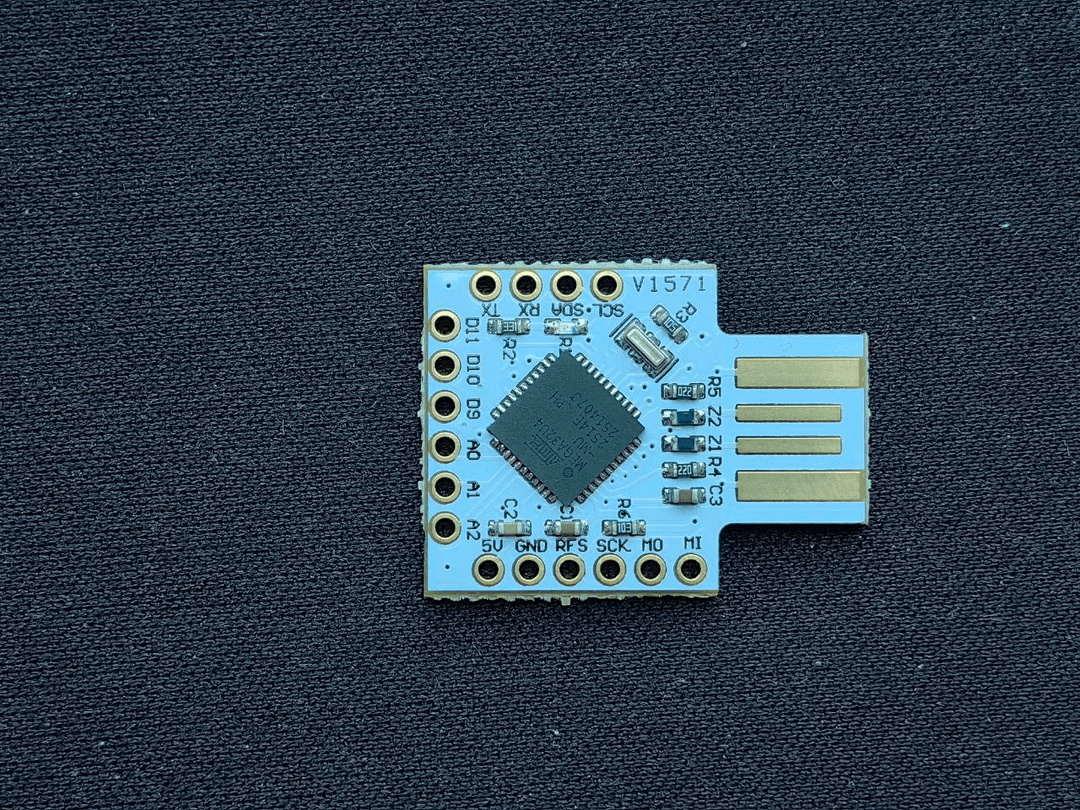

atmega32u4-beetle	Beetle / CJMCU "Mini Arduino Leonardo"	ATmega32U4 (AVR 8-bit, native USB)

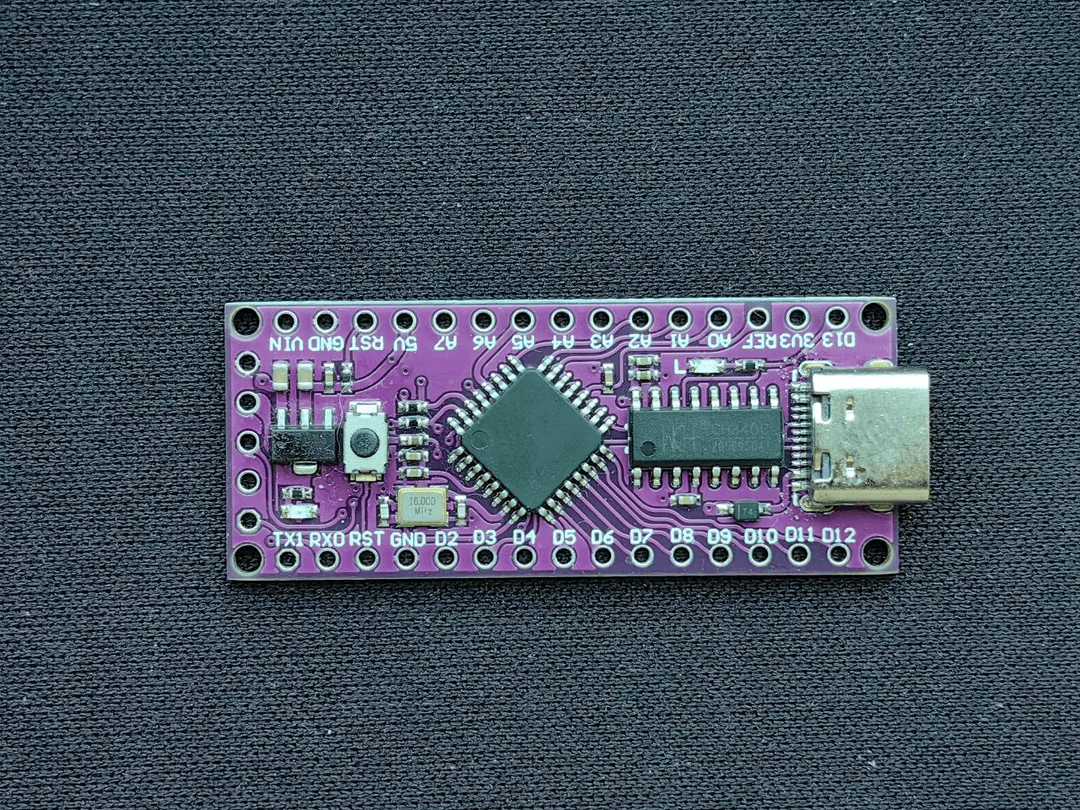

lgt8f328p-minievb	LGT8F328P-LQFP32 MiniEVB, Nano-style 30-pin (silkscreen LGTBF32BP)	LGT8F328P (Logic Green LGT8XM, AVR-compatible)
rp2040-pico	Raspberry Pi Pico (SC0915, and Pico H)	RP2040 (2× Cortex-M0+)

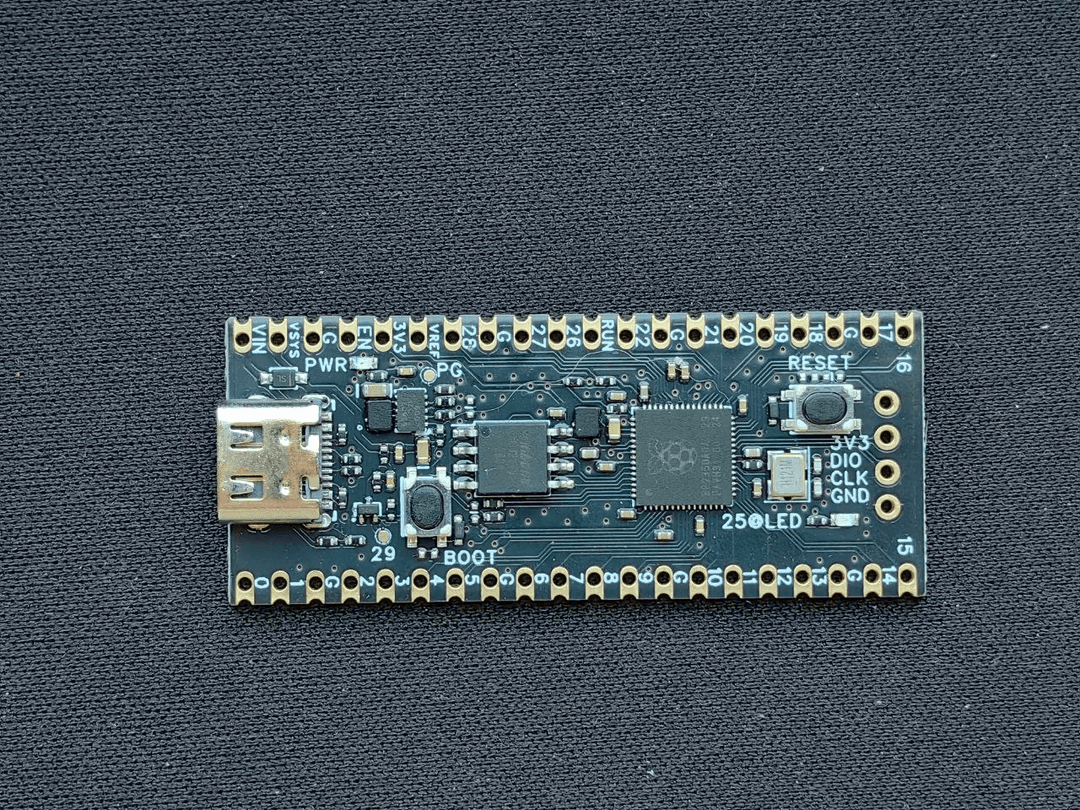

rp2350a-weact	WeAct Studio RP2350A Core Board (V1.0 and V2.0)	RP2350A (2× Cortex-M33)
beu1000-evuba	Baikal Electronics EVU-BA-2.1	BE-U1000 (3× RISC-V: 2× BR-350, BM-310)

Install

As a Claude Code plugin

The repo is a plugin marketplace with one plugin per board. Inside Claude Code:

/plugin marketplace add alexex1993/mcu-skills
/plugin install stm32h750-weact@mcu-skills

Plugin names match the skill names in the table above. Or install from a clone with the scripts below.

macOS / Linux

git clone https://github.com/alexex1993/mcu-skills.git
cd mcu-skills
./scripts/install.sh --list
./scripts/install.sh stm32h750-weact          # symlink into ~/.claude/skills
./scripts/install.sh stm32h750-weact --copy   # or copy, if you want to edit locally
./scripts/install.sh --list                   # result

Windows

git clone https://github.com/alexex1993/mcu-skills.git
cd mcu-skills
.\scripts\install.ps1 --list
.\scripts\install.ps1 stm32h750-weact          # junction into ~\.claude\skills
.\scripts\install.ps1 stm32h750-weact --copy   # or copy, if you want to edit locally
.\scripts\install.ps1 --list                   # result

Then in Claude Code the skill loads by itself when you work on that board, or on demand:

/stm32h750-weact

Project-scoped install instead of user-scoped: copy the skill directory to .claude/skills/ inside your firmware project.

Layout

skills/<family>/<skill-name>/     one skill, ready to copy into ~/.claude/skills
  SKILL.md                        frontmatter + the load-bearing knowledge
  reference/                      deep detail, read on demand
  template/                       a project that actually builds
  assets/                         photos of the board, pinout images
.claude-plugin/marketplace.json   plugin marketplace, one plugin per skill
docs/                             how to author and review a skill
templates/skill-template/         blank skeleton to start from
scripts/                          install.sh / install.ps1, validate.sh / validate.ps1

Every skill has an assets/ directory for pictures of the physical board — a top shot, a bottom shot with a readable silkscreen, a pinout diagram. Photos can be uploaded into IMAGE.md

skills/rp2/rp2040-pico/assets/
  IMAGE.md

Families: stm32, esp32, esp8266, rp2, nrf, avr, baikal. Add a new directory if yours does not fit — one level, family name only, no vendor nesting.

Skill directory name == the name: in its frontmatter, and it must be unique across the whole repo: installed skills all land in one flat ~/.claude/skills/ namespace.

Contributing

The short version: find the spec, build a hello world that runs on real hardware, then write the skill from what you learned. Full pipeline in CONTRIBUTING.md, authoring detail in docs/AUTHORING.md, review bar in docs/CHECKLIST.md.

Rule of thumb for what belongs here: if the answer is in the vendor's getting-started page and the model gets it right without help, leave it out. Everything that cost you an evening goes in.

Articles

• dev.to: LLMs confidently lie about your microcontroller — an article about this repo in English.
• Хабр: скиллы Claude Code для микроконтроллеров — статья об этом репозитории на русском языке.

License

MIT — see LICENSE. Vendored third-party code inside a skill's template/lib/ keeps its own license; note it in that skill's README.

The cross-chip comparison material in skills/esp32/*/reference/esp32-family.md is adapted from ESP32Features by artkeller, used under CC BY 4.0. Attribution is carried in §11 of that file.
