Turn any process — actors × stages × steps — into a vertical swimlane board (SVG, optional PNG), audit its composition quality, and render a stage-ordered reveal animation. korea100studio is a standalone Agent Skill extracted and generalized from korea100's process renderer. It works inside Claude Code and Codex via a SKILL.md entry point plus a small zero-native-dependency ESM CLI (scripts/board.mjs).

Examples

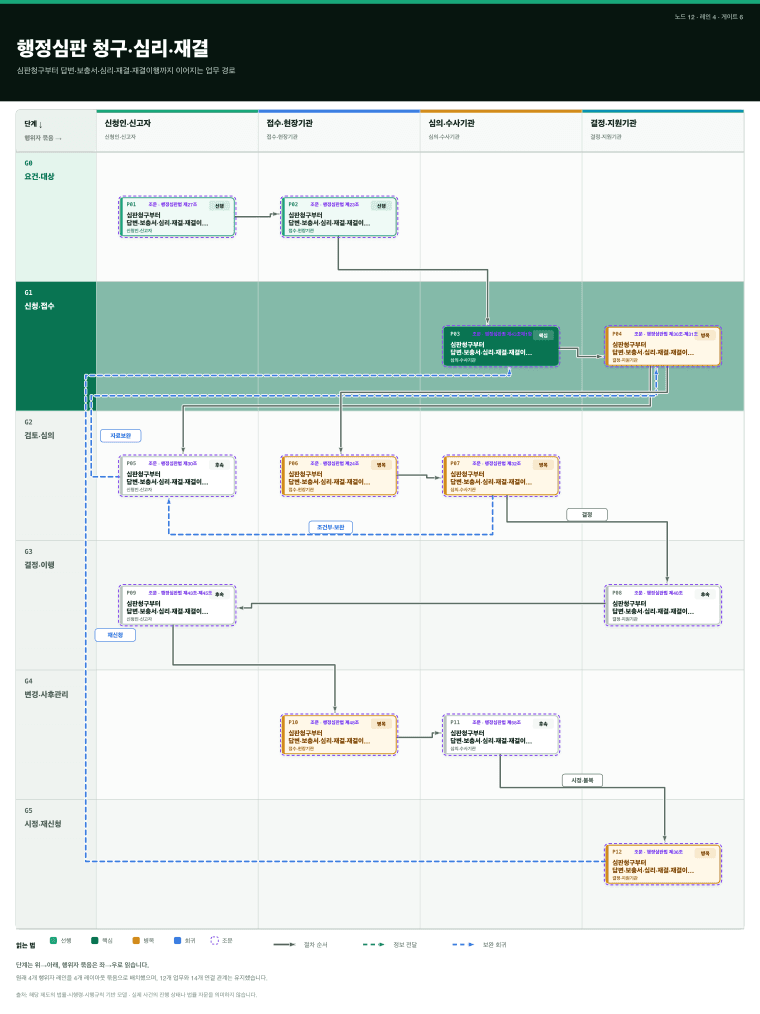

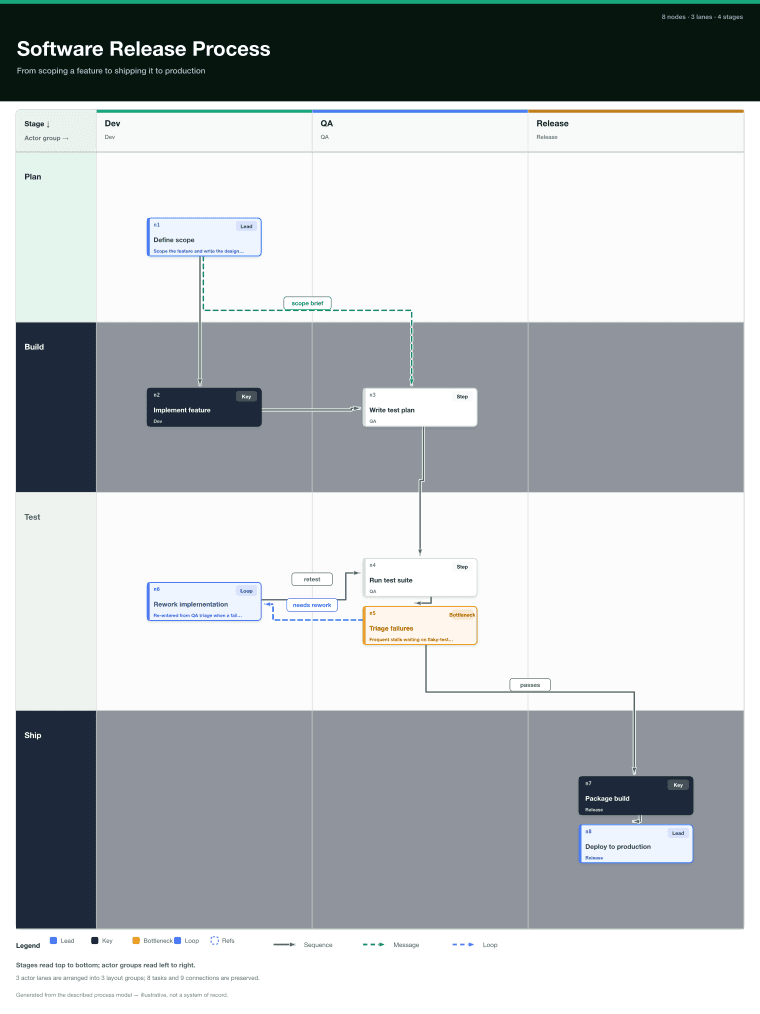

Same engine, two profiles — a neutral software-release board (default) and a korea100-style government board (gov):

default profile	gov profile

Boards also export a stage-ordered reveal animation (self-contained SMIL SVG) — see assets/example-motion.svg, generated with node scripts/board.mjs motion fixtures/generic-sample.json.

Install

As an Agent Skill (Claude Code / Codex) — clone into your skills directory so the agent picks up SKILL.md:

# Claude Code
git clone https://github.com/hosungseo/korea100studio.git ~/.claude/skills/korea100studio
# Codex
git clone https://github.com/hosungseo/korea100studio.git ~/.agents/skills/korea100studio

cd ~/.claude/skills/korea100studio   # or wherever you cloned it
npm install && npm test

As a CLI (any project) — via npm:

npm install -g korea100studio
korea100studio render board.json --out board.svg

# or without installing:
npx korea100studio render board.json --out board.svg

Quickstart

# Render a board to SVG (and PNG if rsvg-convert or cairosvg is installed)
node scripts/board.mjs render fixtures/generic-sample.json --out board.svg --png

# Audit composition quality (crossings, node-piercings, bends, route stretch)
node scripts/board.mjs audit fixtures/generic-sample.json

# Gate on quality budget (exit 1 under --strict if over budget)
node scripts/board.mjs validate fixtures/generic-sample.json --strict

# Stage-ordered reveal animation (self-contained animated SVG)
node scripts/board.mjs motion fixtures/generic-sample.json --out board.motion.svg

CLI

Input

Boards conform to schemas/board-v1.schema.json: lanes (actors) × stages (phases) × nodes ({id, lane, stage, label, emphasis, refs}) × edges ({id, source, target, type}). See references/authoring.md for how an agent turns a natural-language process into a board, and templates/board.template.json for a starter.

Profiles

• default — neutral, English labels; for any domain.
• gov — the korea100 Korean-government look (선행/핵심/병목/회귀 badges).

Select with --profile or a "profile" field on the board. See references/profiles.md.

Output & dependencies

Pure Node.js (≥20), one dependency (ajv) for schema validation. SVG is always produced. PNG is optional — emitted only when rsvg-convert (librsvg) or cairosvg is on PATH. Motion output is a self-contained animated SVG (SMIL, no JS, no external assets).

Composition quality

The audit/validate commands score each board's routed geometry. The key metric is node-piercings — an edge routed behind an unrelated card, hidden by z-order. The renderer's gutter routing keeps in-row and return edges out from behind cards. See references/composition-quality.md.

License

MIT © 2026 Hosung Seo
