ClaudeGate

High-Performance Universal Bridge connecting Claude Code CLI & Anthropic SDKs to ANY AI Model.
Zero-crash streaming, multi-provider failover, chain-of-thought sanitization, PII redactor, and 24+ provider presets.

📑 Table of Contents

• 📌 1. Project Overview
• 📸 2. Live Demo & Terminal Previews
• ✨ 3. Features
• 🛠️ 4. Tech Stack
• 🏗️ 5. Architecture
• 📁 6. Project Structure
• ⚙️ 7. Installation and Setup
• 🚀 8. Usage & User Flow
• 🧪 9. Testing & Diagnostics
• 🔒 10. Security & Privacy Safeguards
• 💡 11. Engineering Decisions
• 🔮 12. Limitations and Future Improvements
• 🤝 13. Contributing & Code of Conduct
• 📄 14. License

📌 1. Project Overview

Claude Code CLI is one of the most capable agentic coding tools available today. However, it is natively locked to Anthropic's commercial cloud endpoints.

ClaudeGate is a lightweight, high-throughput, and secure local API gateway that bridges Anthropic's Messages API protocol (/v1/messages and /v1/messages/count_tokens) into standard OpenAI-compatible Chat Completions.

With ClaudeGate, developers can power Claude Code CLI, Cursor, and Anthropic SDK applications using:

• 🆓 Free & Frontier AI Cloud Models: Stealth Ox Alpha, OpenRouter (Claude Opus 5 / Sonnet 5 / Haiku 4.5), OpenAI (GPT-5.6 Sol / Terra / Luna), DeepSeek (V4-Pro & V4-Flash), Google Gemini (3.1 Pro / 3.7 Flash / 3.5 Flash-Lite), Alibaba Qwen (Qwen3.8-Max / Qwen3.7-Plus / Qwen3.8-27B), Moonshot Kimi (K3 2.8T & K2.7 Code), Meta (Muse Spark 1.2 & Muse Glimmer), Z.ai GLM (GLM-5.3 & GLM-5-Turbo), MiniMax (M3 & M2.7), Cohere (Command A+ / A / R7B), Mistral (Large 3 / Medium 3.5 / Small 4), Perplexity (Sonar Reasoning Pro).
• 🔒 100% Private Local Offline Models: Ollama, LM Studio, vLLM (DeepSeek V4-Pro quantized, Qwen3.6-35B-A3B, Muse Glimmer - zero data leaves your machine).
• 🧠 Next-Gen Model Mapping: Seamlessly routes all Claude versions (Claude 3.5, 3.7, 4.x, 4.5, 5.x, Fable, Mythos) to your configured BIG_MODEL, MIDDLE_MODEL, and SMALL_MODEL tiers or passes through direct model slugs.
• 🏢 Enterprise Private Deployments: Azure OpenAI Service, AWS Amazon Q (via Kiro Bridge), Meta Muse Spark.

📸 2. Live Demo & Terminal Previews

ClaudeGate in active operation, translating Claude Code CLI tool calls, bash commands, and streaming tokens in real-time:

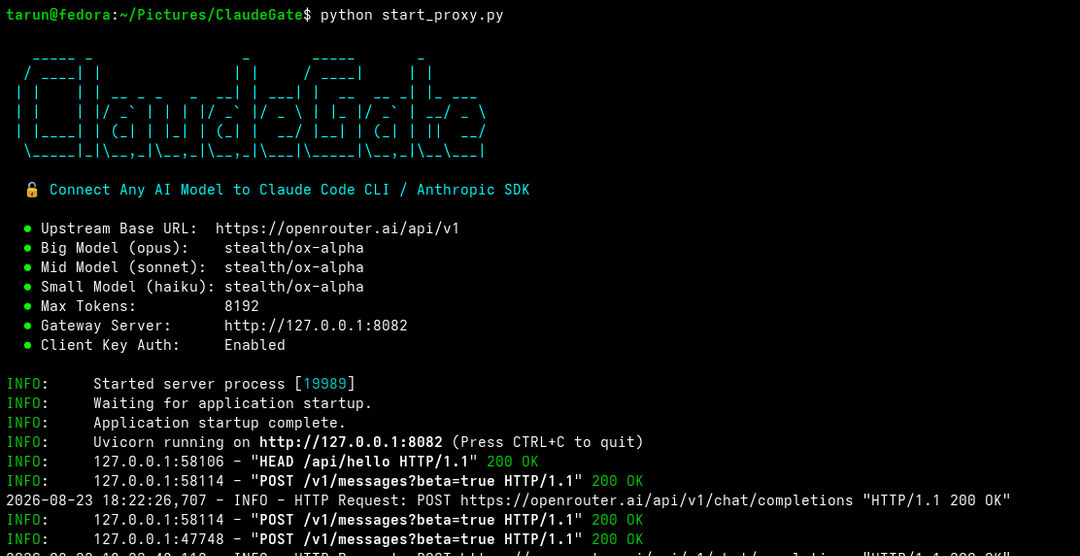

⚡ ClaudeGate Proxy Gateway

🤖 Claude Code CLI in Action

✨ 3. Features

• ⚡ Zero-Crash SSE Streaming: Translates raw OpenAI chunk streams into Anthropic Server-Sent Events (content_block_start, content_block_delta, message_delta, message_stop). Mid-stream disconnects and upstream errors are caught gracefully without crashing Starlette/ASGI.
• 🔄 Automatic Multi-Provider Failover: Seamlessly fails over from primary upstream to backup providers (e.g. OpenRouter $\rightarrow$ Groq $\rightarrow$ local Ollama) on transient 503, 429, or timeout errors without dropping the active client session.
• 🛡️ PII & Secret Sanitizer: Intercepts outgoing prompts and automatically scrubs AWS keys, GitHub PATs, OpenAI tokens, and SSH private keys before requests leave your computer (SANITIZE_SECRETS=true).
• 🛠️ Full Bi-directional Tool / Function Calling: Seamlessly translates Claude Code file-system operations, terminal commands, and search tools into OpenAI function calls and vice versa.
• 🧹 Chain-of-Thought / <thinking> Sanitizer: Cleanses internal reasoning tokens and <thinking> blocks from conversation history so multi-turn reasoning models (like DeepSeek R1/V4) never trigger 400 Bad Request errors on follow-up turns.
• ⏳ Extended 10-Minute Keep-Alive: Tuned TCP socket lifespan (timeout_keep_alive=600) to prevent Node.js ECONNRESET drops during prolonged user typing pauses.
• 🎛️ Universal CLI Tooling: Interactive setup wizard (--setup), live connectivity diagnostic (--test), and 24+ instant preset switches (--preset <name>).
• 🐳 Docker & Compose Ready: Run as a standalone daemon container with health-check monitoring.

🛠️ 4. Tech Stack

• Backend Framework: FastAPI (High-performance async ASGI web framework)
• ASGI Server: Uvicorn (Configured with custom socket keep-alives and signal handling)
• Data Validation & Schemas: Pydantic v2 (Strict type serialization for Anthropic & OpenAI payloads)
• HTTP Clients: httpx & openai-python (Async connection pooling and streaming response parsing)
• Security & Crypto: Python hmac (Constant-time token authentication) and Regex Token Redaction Engine
• Containerization: Docker & Docker Compose (Multi-stage Python slim base image)

🏗️ 5. Architecture

ClaudeGate sits transparently between Claude Code CLI and your chosen AI model provider:

flowchart LR
    A["Claude Code CLI\nor Anthropic SDK"] -- "POST /v1/messages\n(Anthropic Schema)" --> B["ClaudeGate Gateway\n(FastAPI / Port 8082)"]

    subgraph CoreEngine ["ClaudeGate Core Engine"]
        B --> C["Constant-Time Auth & IP Validator"]
        C --> D["Request Sanitizer\n(PII & Credential Redaction)"]
        D --> E["Protocol Converter\n(Tools, Messages, System Prompts)"]
        E --> F["Upstream Client & Failover Controller"]
    end

    subgraph Upstream ["Upstream AI Providers"]
        F -- "Primary Request" --> G["Primary Provider\n(OpenRouter / DeepSeek / Gemini)"]
        F -. "Auto Failover on 503/429" .-> H["Backup Provider\n(Groq / Local Ollama)"]
    end

    G -- "OpenAI Chunk Stream" --> I["SSE Stream Adapter\n(Zero-Crash Generator)"]
    H -- "OpenAI Chunk Stream" --> I
    I -- "Anthropic SSE Events" --> A

📁 6. Project Structure

ClaudeGate/
├── assets/                    # Visual assets and screenshots
│   ├── ClaudeGate.png         # Project Banner & Logo
│   ├── claude_terminal_ss.png # Claude Code CLI in action
│   └── proxy_terminal.png     # ClaudeGate terminal proxy log
├── Dockerfile                 # Container image specification
├── docker-compose.yml         # Container service configuration
├── requirements.txt           # Python package dependencies
├── pyproject.toml             # Modern package build configuration
├── setup.py                   # Legacy pip install compatibility
├── start_proxy.py             # CLI & Server launcher script
├── .env.example               # Comprehensive environment template
├── LICENSE                    # MIT License
├── SECURITY.md                # Security policy & reporting guidelines
├── CODE_OF_CONDUCT.md         # Community standard of conduct
├── CONTRIBUTING.md            # Contribution guidelines
├── CHANGELOG.md               # Version release history
├── README.md                  # Project documentation
│
├── presets/                   # Ready-to-use provider templates
│   ├── openrouter.env         # OpenRouter (Claude Opus 5, Sonnet 5, Haiku 4.5)
│   ├── groq.env               # Groq (DeepSeek V4-Pro, Llama 4 Maverick, Muse Glimmer)
│   ├── ollama.env             # Ollama (100% Local DeepSeek V4-Pro, Qwen3.6-35B, Muse Glimmer)
│   ├── deepseek.env           # DeepSeek (DeepSeek V4-Pro & V4-Flash)
│   ├── gemini.env             # Google Gemini (Gemini 3.1 Pro, 3.7 Flash & 3.5 Flash-Lite)
│   ├── openai.env             # OpenAI Official (GPT-5.6 Sol, GPT-5.6 Terra, GPT-5.6 Luna)
│   ├── kimi.env               # Moonshot AI (Kimi K3 2.8T Reasoning & K2.7 Code)
│   ├── qwen.env               # Alibaba Qwen / DashScope (Qwen3.8-Max, Qwen3.7-Plus, Qwen3.8-27B)
│   ├── mistral.env            # Mistral AI (Mistral Large 3, Mistral Medium 3.5, Mistral Small 4)
│   ├── perplexity.env         # Perplexity (Sonar Reasoning Pro, Sonar Pro & Sonar)
│   ├── cohere.env             # Cohere (Command A+, Command A & Command R7B)
│   ├── minimax.env            # MiniMax (MiniMax M3 Frontier & MiniMax M2.7)
│   ├── meta.env               # Meta AI (Muse Spark 1.2, Llama 4 Maverick, Muse Glimmer)
│   ├── zai.env                # Z.ai / Zhipu GLM (GLM-5.3 Flagship, GLM-5-Turbo, GLM-4.7-Flash)
│   ├── together.env           # Together AI (DeepSeek V4-Pro, DeepSeek V4-Flash, Qwen3.8-27B)
│   ├── fireworks.env          # Fireworks AI (DeepSeek V4-Pro, DeepSeek V4-Flash, Qwen3.8-27B)
│   ├── cerebras.env           # Cerebras (DeepSeek V4-Pro, Llama 4 Maverick, Muse Glimmer)
│   ├── sambanova.env          # SambaNova Cloud (DeepSeek V4-Pro, Llama 4 Maverick, Qwen3.8-27B)
│   ├── siliconflow.env        # SiliconFlow (DeepSeek V4-Pro, DeepSeek V4-Flash, Qwen3.8-27B)
│   ├── lmstudio.env           # LM Studio Desktop (DeepSeek V4-Pro & Muse Glimmer)
│   ├── vllm.env               # vLLM Self-Hosted GPU (DeepSeek V4-Pro & Qwen3.6-35B)
│   ├── azure.env              # Azure OpenAI Service (o1 & GPT-5.6 Enterprise Deployments)
│   ├── kiro.env               # AWS Amazon Q Developer / Claude Opus 5 Bridge
│   ├── ox.env                 # Stealth Ox Alpha (Frontier Reasoning Model)
│   └── nemotron.env           # Nvidia Nemotron Free Tier
│
├── scripts/                   # Verification & test utilities
│   ├── verify_failover.py     # Automated failover simulation runner
│   └── test_live_nemotron_ox.py # Live dual-model probe (Nemotron & Ox Alpha)
│
└── src/                       # Source code
    ├── main.py                # FastAPI app & Uvicorn lifecycle
    ├── cli.py                 # CLI commands, setup wizard & test runner
    ├── api/
    │   └── endpoints.py       # /v1/messages, /health & /count_tokens routes
    ├── conversion/
    │   ├── request_converter.py   # Anthropic -> OpenAI message & tool parsing
    │   └── response_converter.py  # OpenAI stream -> Anthropic SSE translation
    ├── core/
    │   ├── client.py          # Async client with failover & retry logic
    │   ├── config.py          # Dynamic environment loader & constant-time auth
    │   ├── constants.py       # Anthropic & OpenAI protocol constants
    │   ├── logging.py         # Structured logging configuration
    │   └── model_manager.py   # Intelligent model tier & slug router
    ├── models/
    │   ├── claude.py          # Pydantic schemas for Anthropic API
    │   └── openai.py          # Pydantic schemas for OpenAI API
    └── security/
        └── sanitizer.py       # Secret, AWS key, and PAT redaction engine

⚙️ 7. Installation and Setup

Step 1: Clone Repository & Create Environment

git clone https://github.com/Santosh-Prasad-Verma/ClaudeGate.git
cd ClaudeGate

python3 -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt

Step 2: Configure Your Upstream Provider

Launch the interactive configuration wizard:

python start_proxy.py --setup

Or load a ready-made preset directly:

python start_proxy.py --preset openrouter

Step 3: Configure Claude Code CLI

You can configure Claude Code CLI to communicate with ClaudeGate using either Permanent or Session-Based configuration:

Option A: Permanent Configuration (Recommended)

Edit (or create) ~/.claude/settings.json to automatically route all future claude commands to ClaudeGate:

{
  "env": {
    "ANTHROPIC_BASE_URL": "http://127.0.0.1:8082",
    "ANTHROPIC_API_KEY": "sk-claudegate-local"
  }
}

Option B: Session-Based (Current Terminal Only)

Export the variables in your active shell before launching Claude:

export ANTHROPIC_BASE_URL="http://127.0.0.1:8082"
export ANTHROPIC_API_KEY="sk-claudegate-local"

Step 4: ✅ Verify It's Running

Run the built-in diagnostic test to verify your upstream provider connection and measure latency:

python start_proxy.py --test

Expected Output:

🔍 Testing upstream connection...
   Provider Base URL: https://openrouter.ai/api/v1
   Test Model:        stealth/ox-alpha
✅ Connection Successful! Model is active and responsive.
   Status: 200 OK

You can also probe the gateway health endpoint directly from your terminal:

curl http://127.0.0.1:8082/health
# {"status":"healthy","service":"claudegate"}

🚀 8. Usage & User Flow

🧭 End-to-End User Flow (How It Works in Practice)

Once setup is complete, your day-to-day workflow looks like this:

┌─────────────────────────────────────────────────────────────────────────────┐
│  TERMINAL 1: Start ClaudeGate Gateway Daemon                                │
│  $ cd ClaudeGate && python start_proxy.py                                   │
│  [Gateway listening on http://127.0.0.1:8082 (OpenRouter/Groq/Ollama)]       │
└──────────────────────────────────────┬──────────────────────────────────────┘
                                       │ (Translates Anthropic ⟷ OpenAI protocol)
                                       ▼
┌─────────────────────────────────────────────────────────────────────────────┐
│  TERMINAL 2: Your Codebase Workspace (Run Claude Code)                       │
│  $ cd /path/to/my-project                                                   │
│  $ claude                                                                   │
│                                                                             │
│  > "Add JWT authentication to src/auth.py and run the unit tests"           │
│                                                                             │
│  Claude Code ──────► ClaudeGate (8082) ──────► DeepSeek R1 / Qwen / Groq    │
│  (CLI Tool Calls)   (Translates schemas)       (Executes inference & tools) │
│  ◄────────────────── (Streams SSE Events) ◄──────────────────────────────── │
│                                                                             │
│  ✅ Claude Code automatically reads files, writes code, and runs bash tests! │
└─────────────────────────────────────────────────────────────────────────────┘

Step-by-Step Daily Execution:

1. Start the Gateway (Terminal 1):

   copy

   cd ClaudeGate
   python start_proxy.py


   ClaudeGate will boot up, display active model mappings, and listen on http://127.0.0.1:8082.

2. Open Your Coding Project (Terminal 2): Navigate to whatever software project or repo you want to work on:

   copy

   cd ~/my-flutter-app   # or any project directory


3. Launch Claude Code:

   copy

   claude


   You can now type natural language instructions as usual. Claude Code will execute file inspections, bash commands, multi-file edits, and git commits powered entirely by your chosen backend model!

4. Switching Models On The Fly: Want to swap from free cloud models (OpenRouter) to 100% private offline models (Ollama)? In Terminal 1:

   copy

   python start_proxy.py --preset ollama
   python start_proxy.py


   Claude Code in Terminal 2 will immediately begin routing through local Ollama without needing a restart.

💻 CLI Utilities & Commands

🐳 Running with Docker

If you prefer to run ClaudeGate as a background Docker container:

# Build and start container in the background
docker compose up -d --build

# View real-time logs
docker compose logs -f

# Check container health status
docker ps

# Stop container
docker compose down

🧪 9. Testing & Diagnostics

ClaudeGate includes built-in live diagnostics and automated test suites:

1. Upstream Connectivity & Latency Probe

Test your active model and measure upstream response latency:

python start_proxy.py --test

Output:

🔍 Testing upstream connection...
   Provider Base URL: https://openrouter.ai/api/v1
   Test Model:        stealth/ox-alpha
✅ Connection Successful! Model is active and responsive.
   Status: 200 OK

2. Multi-Provider Fallback Verification

Simulate an upstream outage to test automatic failover:

python scripts/verify_failover.py

3. Automated Pytest Suite

Run the full test suite covering non-streaming failover, SSE streaming, and endpoint security:

pytest tests/ -v

🔒 10. Security & Privacy Safeguards

ClaudeGate implements defense-in-depth privacy controls to ensure secure self-hosting:

• Localhost-Only Default (127.0.0.1): Restricts incoming traffic exclusively to the local machine.
• Constant-Time Authentication: Uses Python's hmac.compare_digest to validate x-api-key headers, preventing side-channel timing analysis.
• Secret & PII Redaction Engine: When SANITIZE_SECRETS="true", prompts are automatically scrubbed for sensitive tokens (GitHub PATs, AWS Access Keys, OpenAI Keys, Private SSH keys) before reaching upstream providers.
• Vulnerability Reporting: For responsible disclosure, please refer to our Security Policy.

💡 11. Engineering Decisions

1. Error Markers over Generator Exceptions:

   • Problem: In Starlette / FastAPI, raising HTTPException inside an active StreamingResponse async generator after HTTP headers (200 OK) are flushed causes a fatal RuntimeError: response already started and terminates the ASGI worker.
   • Decision: ClaudeGate's generator yields formatted ERROR::<status>::<message> tokens that the SSE converter catches and translates into standard Anthropic error events, keeping the worker process healthy.

2. Multi-Turn <thinking> Cleansing:

   • Problem: Reasoning models (like DeepSeek R1) output reasoning tokens. When Claude Code sends subsequent conversation turns containing these blocks in history, standard OpenAI endpoints reject the payload with 400 Bad Request.
   • Decision: The request_converter automatically identifies and filters thinking and redacted_thinking content blocks before dispatching to upstream providers.

3. Constant-Time Client Authentication:

   • Problem: Standard string comparisons (key == expected) are susceptible to side-channel timing attacks.
   • Decision: Implemented hmac.compare_digest across all header validation points.

4. 10-Minute TCP Keep-Alive (timeout_keep_alive=600):

   • Problem: Node.js HTTP agents in Claude Code CLI drop connections with ECONNRESET if an interactive user takes longer than 5 seconds between prompts.
   • Decision: Configured explicit keep-alive headers and Uvicorn socket timeouts to support extended interactive developer pauses.

🔮 12. Limitations and Future Improvements

Current Limitations

• Image Input Format: Multimodal image support currently converts Base64 images directly; URLs require public accessibility.
• Provider-Specific Parameters: Non-standard hyperparameters outside temperature and top_p are passed as standard OpenAI extensions.

Roadmap & Future Improvements

• Real-Time Web Dashboard: Built-in visual UI (http://127.0.0.1:8082/dashboard) for live latency charts, token velocity, and cost tracking.
• Prompt Cache & SQLite Deduplication: In-memory and SQLite KV caching for repetitive codebase index prompts.
• Dynamic Complexity Router: Automatic classification of task difficulty (e.g. routing simple edits to Groq and complex architectural refactors to DeepSeek R1).
• Unix Domain Sockets (UDS): Zero-network communication option over /run/user/$UID/claudegate.sock.

🤝 13. Contributing & Code of Conduct

We welcome bug fixes, documentation improvements, new provider presets, and feature additions!

• Contributing Guide: Check out CONTRIBUTING.md for local environment setup and PR workflows.
• Code of Conduct: This project follows the Contributor Covenant v2.1.
• Adding Presets: To contribute a new preset, add presets/<provider_name>.env and submit a pull request!

📄 14. License

Distributed under the MIT License. See LICENSE for more information.

Built with ❤️ for the open-source & AI developer community.
Empowering developers to run Claude Code with any model, anywhere, completely unrestricted.

⭐ If you find ClaudeGate useful, consider giving it a star on GitHub! ⭐
