A skill for Claude Code, Codex, Open Code, Pi Agent, and other AI coding agents: turn a text description of your system architecture into an editable PowerPoint architecture diagram.

What it is

Turn text descriptions of an architecture into editable PPT diagrams: the agent generates an SVG from your description, auto-validates the layout, then exports to native PowerPoint shapes.

vs. direct image generation

Showcase

All diagrams below were generated entirely from text descriptions by the skill, then scored by the 13-dimension evaluator (each scored ≥76/100). They double as the regression suite under evals/.

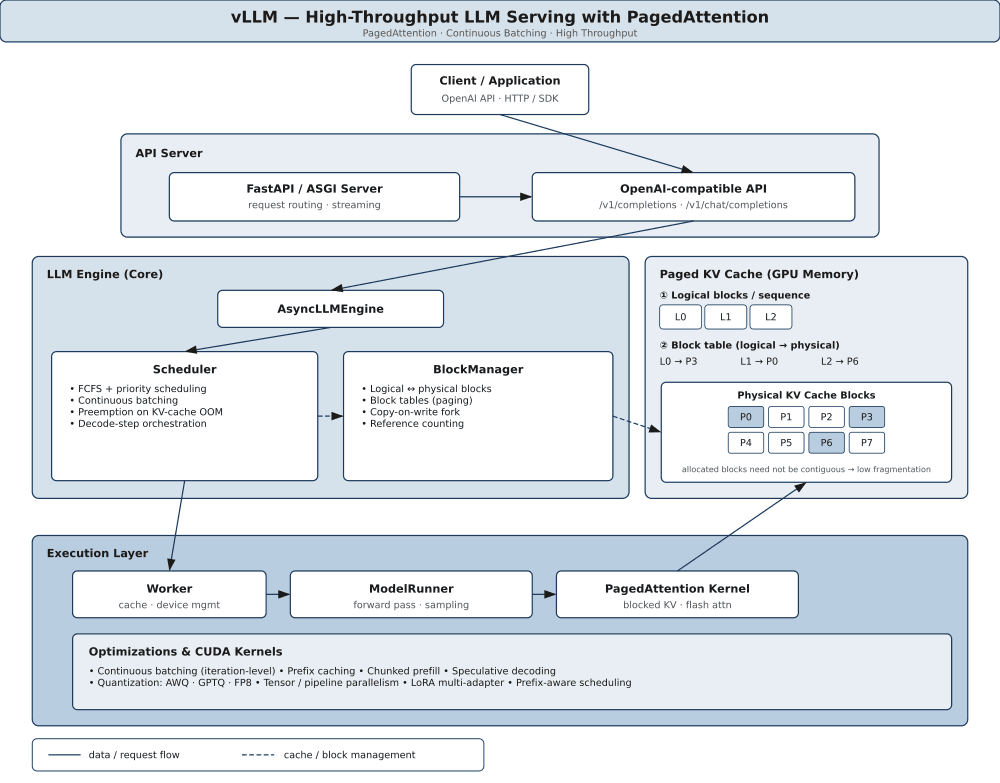

vLLM — High-Throughput LLM Inference Serving (PagedAttention)

Six-layer request pipeline (client → API server → engine → paged KV cache → execution → optimizations). Solid edges = data flow; dashed = cache/block management. Scheme S1 Monochrome Blue.

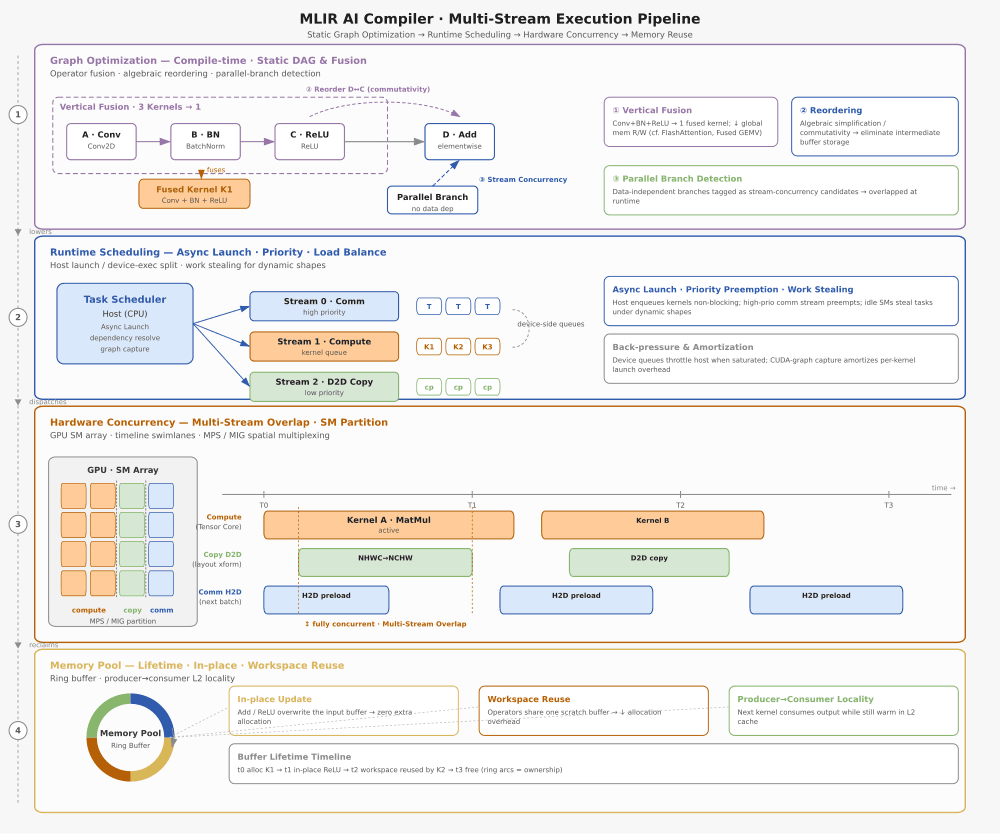

MLIR AI Compiler — Multi-Stream Execution Pipeline

A 4-layer × multi-column matrix (graph optimization → transformation → lowering → codegen) with vertical-fusion grouping and a concurrent multi-stream overlap timeline. 8-accent categorical palette.

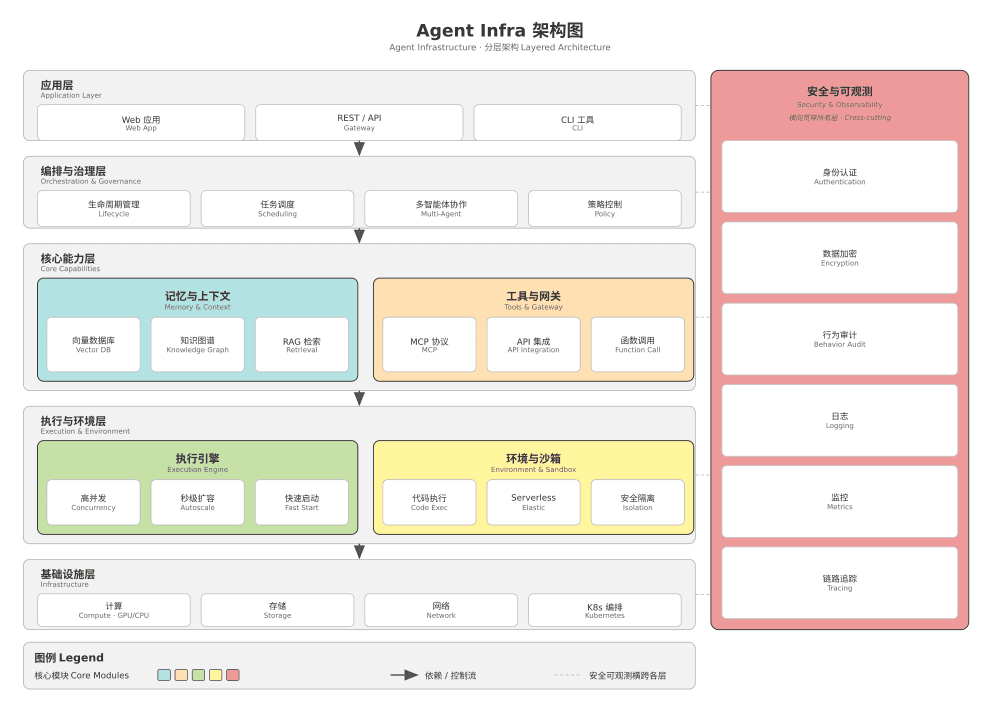

Agent Infrastructure — Layered Architecture

Five horizontal layers (application → orchestration → core capabilities → execution → infrastructure) with a cross-cutting security/observability band. Bilingual CN/EN labels. Neutral grays + 5 colored core modules.

Best Practices

1. Start with a clear text description. Before coding, describe the architecture in prose—how many layers, what components each layer has, how they connect, and any special annotations. A crisp text spec (like the specs in evals/*/input.md) is the single biggest predictor of a quality diagram. For open-source projects, you can use the system architecture description from DeepWiki.
2. Let the skill generate. Submit the text description to the skill and let it generate the initial gen.py and SVG. The evaluator automatically catches overlaps, dangles, and crossings.
3. The skill auto-reviews the score. If the score is ≥80, the diagram is structurally sound. If <80, the agent can automatically fix layout issues via auto_refine or multi-round LLM correction (--llm-iter).
4. Export to PPTX for final polish. Run svg_to_pptx() to get an editable PowerPoint file. Tweak colors, fonts, arrows, and layout there to match your brand or publication style—these belong in the presentation layer, not the generator code.

Suggested workflow: first discuss with DeepWiki or your agent to produce a clear text description of the system architecture, then use this skill to quickly generate a PPTX diagram, and finally fine-tune colors, labels, and other details directly in PPT.

Install (Claude Code)

This repo is a plugin marketplace. Add it and install the plugin:

/plugin marketplace add Andy1314Chen/architecture-drawer
/plugin install architecture-drawer@architecture-drawer

Or from the CLI:

claude plugin marketplace add Andy1314Chen/architecture-drawer
claude plugin install architecture-drawer@architecture-drawer

Scope with --scope project (shared via version control) or --scope local (gitignored). Default is user.

Codex CLI

Codex CLI fully supports the Agent Skills directory structure.

Copy the skill directory into Codex's skills folder (usually ~/.codex/skills/):

cp -r plugins/architecture-drawer/skills/architecture-drawer ~/.codex/skills/architecture-drawer

Or install project-scoped (recommended):

mkdir -p .codex/skills
cp -r plugins/architecture-drawer/skills/architecture-drawer .codex/skills/

Once installed, ask Codex naturally — the workflow in SKILL.md is consumed automatically:

> Draw the architecture of vLLM and export to PPTX

Other agent platforms (Gemini CLI, Cursor, Copilot)

Each skill is a standalone Agent Skills spec directory. Copy it into your platform's skills location (typically .agents/skills/):

cp -r plugins/architecture-drawer/skills/architecture-drawer .agents/skills/architecture-drawer

Dependencies

The agent generates a gen.py that imports three pure-Python modules (svg_utils.py, evaluator.py, svg2pptx.py) co-located in the skill. You don't write this code — the agent does. Install these once so generated diagrams can render and export:

Repository layout

architecture-drawer/
├── .claude-plugin/marketplace.json              # Claude Code marketplace registry
├── plugins/architecture-drawer/
│   ├── .claude-plugin/plugin.json               # plugin manifest
│   └── skills/architecture-drawer/
│       ├── SKILL.md                             # agent-consumable workflow (spec-compliant)
│       ├── scripts/                             # svg_utils.py · evaluator.py · svg2pptx.py
│       ├── references/design_specs.md           # 4 preset color schemes (S1–S4)
│       ├── evals/                               # 7 regression cases (gen.py each)
│       └── assets/
├── tests/                                       # pytest: score thresholds + SVG golden snapshots
│   ├── conftest.py
│   ├── test_regression.py
│   ├── test_skill_spec.py                       # Agent Skills spec compliance
│   └── golden/*.svg                             # snapshot baselines
└── examples/                                    # minimal demo of the generate-evaluate-export loop

Community

Thanks to the LINUX DO community. The project gained wider reach, discussion, and real-world feedback after being shared there, and those conversations have helped me keep finding issues and improving architecture-drawer.

References & acknowledgments

The geometry/connection detection draws on several open-source projects (their reference docs and validators were studied): ink-graph, fireworks-tech-graph, svg-animations, svg-design, and svg2pptx (the architectural blueprint for the PPTX export module). See the full credits in SKILL.md.

License

MIT — see LICENSE.
